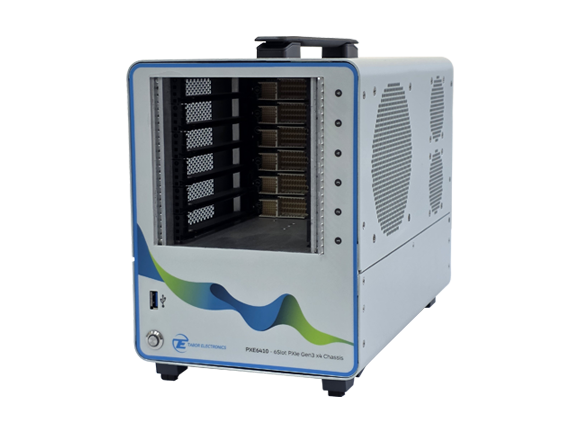

The PXE6410 is a PXIe based 6 based slot Gen 3 x4 chassis, that supports the Tabor Proteus Family of AWG’s and the TE330x family of PXIe RF amplifiers.
Read more >

21 Slot, Gen 4 x8

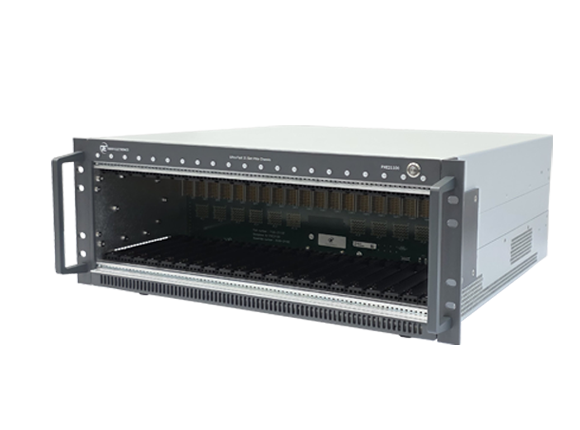

The PXE21100 is the fastest PXIe chassis in the industry, with 21 available usable slots, ideal for high density high speed measurement applications.
Read more >

High Voltage Amplifiers

High-voltage amplifiers are key in applications such as vehicle ECU susceptibility testing, multi-phase power system testing, and other applications when hundreds of peak-to-peak voltage is required.
Read more >

Amplify up to 20GHz

Model A10200 is an ultra-small footprint, ultra wideband, high power amplifier designed for high frequency, high power, signal amplification.
Read more >
Solutions
Knowledge Center
About

Model P1282M

1.25GS/s 16Bit 1GS Mem 2CH 4 Markers AWG/AWT

The Tabor Proteus family is a set of instruments that doesn't just output waveforms but listens, thinks, and reacts in real-time, that is built on an advanced SDR architecture. Whether you're simulating EW Scenarios, controlling qubits, or pushing next-generation wireless communications to its limits, the Proteus combines up to a 9GS/s advanced RF DAC with an optional 5.4GS/s RF ADC to create a transceiver that is the Swiss Army knife for the next generation of RF engineering.

Modular Design, from 2 to 100's of channels
Fast PCIe data transfer bus.
Up to 16GS of memory
Integrated Digital IQ Modulators and Demodulators
Excellent phase noise and spurious performance
Feedback control system for conditional waveform generation

Relevant Documents

Data Sheet

View Options and Ordering Information

Related Downloads

Brochures and Data Sheets

Declaration of Conformity and Certificates

Documents and articles

Download Type

Description

Version

Release Date

Data Sheets

Proteus Series Datasheet (885 KB)

Ver. 3.34

23/04/2025

Software

Wave Design Studio (170 MB)

Ver. 1.10.40

16/11/2025

Manuals

Proteus Programming Manual (4 MB)

Ver. 1.7

03/07/2023

Manuals

Proteus Module User Manual (5 MB)

Ver. 1.3

20/03/2024

Manuals

Wave Design Studio User Manual (10 MB)

Ver. 1.1

14/02/2021

Software

Update Tool (91 MB)

Ver. 1.1.280

27/03/2025

Software

Proteus SCPI MATLAB Examples (37 KB)

Ver. 3.0

19/07/2023

Firmware

Proteus FPGA (9 MB)

Ver. 1.240.36

16/07/2025

Solution Notes

Qubit Characterization (903 KB)

Ver. 1.0

03/10/2022

Solution Notes

Solution Note - Proteus AWT, Radar Primer (1 MB)

Ver. 1.0

28/10/2022

Solution Notes

Proteus DUC Primer (2 MB)

Ver. 1.1

18/07/2025

White Papers

Improved Pulsed RF Signal Generation and Acquisition for NMR Excitation and FID Capture (428 B)

Ver. 1.0

13/12/2023

White Papers

NMR_FID_SIMUL (428 B)

Ver. 1.0

13/12/2023

Application Notes

ProtProteus AWT Pulse Counter - Application Noteeus AWT Pulse Counter - Application Note (546 KB)

Ver. 1.0

10/04/2024

Application Notes

Pulse Counter (3 KB)

Ver. 1.0

10/04/2024

Application Notes

ProtProteus Multi-Channel Triggering - Application Noteeus Multi-Channel Triggering - Application Note (596 KB)

Ver. 1.0

11/04/2024

Application Notes

Trigger all Channels - Arbitrary Mode (3 KB)

Ver. 1.0

11/04/2024

Application Notes

Trigger all Channels - Task Table Mode (3 KB)

Ver. 1.0

11/04/2024

Manuals

PXE21100 User Manual (2 MB)

Ver. 1.1

01/09/2025

Manuals

PXE6410 User Manual (497 KB)

Ver. 1.0

17/05/2024

Manuals

Update Tool User Manual (908 KB)

Ver. 1.3

31/03/2025

Features

Modular, scalable and compact

Built on the industry-standard PXI Express architecture, the Proteus Arbitrary Waveform Transceiver offers a modular design that scales easily to hundreds of channels while minimizing footprint. Its high-density form factor packs four generator outputs and two digitizer inputs into just three PXI slots. This makes Proteus a space-efficient and cost-effective solution for synchronized, phase-coherent applications such as EW simulation, large-scale qubit control, and massive MIMO research.

Ultra-fast data transfer

The Proteus architecture is optimized for maximum data throughput, leveraging a state-of-the-art PCIe backplane. Key capabilities include bidirectional waveform memory transfer, real-time signal generation using pulse descriptor words (PDWs), and uninterrupted streaming for playback and recording applications. Proteus’s high-speed data transfer architecture revolutionizes performance across Electronic Warfare, Communications, and Physics by removing traditional bandwidth and memory bottlenecks. For Electronic Warfare the continuous streaming of dense, non-repeating threat environments and real-time Pulse Descriptor Word (PDW) is essential for realistic scenario generation. This massive throughput supports the transmission of long, real-world data sequences required for rigorous wireless testing, while in physics and quantum computing, the system’s rapid waveform changing helps characterize QBits.

Real-time feedback control system

The Tabor Proteus real-time feedback system is important because it fundamentally shifts signal processing from a "pre-loaded" paradigm to a "responsive" one. By integrating the Arbitrary Waveform Generator (DAC) and the Digitizer (ADC) into a single FPGA-controlled unit, it eliminates the round-trip latency of sending data back to a PC for processing. In high-speed applications, the time it takes to measure a signal, process it, and generate a response is the critical bottleneck. The Proteus system reduces this latency, allowing for conditional waveform generation—meaning the system changes its output instantly based on what was received. This is a key feature for Closed-loop Electronic Warfare systems, or a Radar Target Generators, and Qbit control and reset.

Task driven non-linear waveform sequencing

Unlike traditional AWGs, its Task Table capability is a conditional state machine rather than a linear waveform sequencer. This allows the system to process incoming data via its integrated receiver and use real-time feedback to instantly jump between waveform segments, enabling intelligent, logic-based responses to changing conditions with minimal latency. In Radar Mode, this tight integration of Tx, Rx, and FPGA transforms the instrument into a responsive Radar Target Simulator (RTS) capable of DRFM-like functionality. The system can detect incoming pulses and immediately schedule coherent, modified echoes—such as Doppler-shifted or delayed signals—to simulate moving targets. Deterministic wavefrom sequencing, real-time feedback, and radar target generation capability are easily programmed using Python, Matlab, C or LabView.

In this video, we use the Proteus Arbitrary Waveform Transceiver to measure the length of a coax cable. We transmit 200MHz pulses of RF energy and measuring the delay through the cable. The delay is 0.068us , speed of light is 300,000,000 meters/s. Therefore the cable length is 20M. In the following videos we will demonstrate more advanced measurements - but let’s start at the beginning.

This tutorial shows how significant cost savings can be achieved by using digitizers (ADC) in multiple Nyquist zones. We use the Tabor Proteus P9082M Arbitrary Waveform Generator with an optional 5.4GS/s analog to digital converter, transforming the AWG into an Arbitrary Waveform Transceiver, (AWT).

We use the Lucid 12GHz RF Signal Generator (also available in 3GHz and 6GHz models) to generate tones up to 10GHz and show how to measure the signal and understand the trade-offs such as amplitude roll-off.

In this tutorial we show how significant cost and complexity savings can be achieved, by using RF DAC features such as Multiple Nyquist Zones, Interpolation and Digital-Up-Conversion (DUC).

We use the Proteus P9484M Arbitrary Waveform Generator (RF AWG), with 9GHz of analog bandwidth, enabling direct generation of RF or Microwave Signals using either multiple Nyquist zones or the built-in IQ modulator feature of the DUC. Note the frequency 3.6GHz, should be 3.2GHz

The recent advances in commercial-off-the-shelf high speed DAC and ADC technology, combined with the growth of fast instrument/computer interconnections such as those employed in PXIe, has enabled the creation of new instrument architectures.

In this talk we gave at IMS2021's Technical Talks, we perform a ‘tear down’ of the Tabor Proteus Arbitrary Waveform Transceiver and explore concepts such as direct to RF/Microwave Signal Generation and Analysis, multiple Nyquist Zone Operation, on-chip IQ modulation, and real-time data streaming.

If you are a designer of Phased Array Radars, interested in Electronic Warfare technique generation, working on next generation wide-bandwidth OFDM technology such as WiFi-7, 5G or even 6G you will find this session invaluable.

For more information contact [email protected]

In this presentation, you will learn about the new fully digital architecture for Vector Signal Generation and Analysis made possible by the latest generation of Arbitrary Waveform Transceivers (AWT). They can improve channel density and performance, simplify setup complication and enhance experiment efficiency.

Solution examples, based on the Tabor Proteus for multiple relevant application areas such as; MIMO, Phase-Array Radar, Automotive Testing and Quantum Computing will be shown, stressing the gains in terms of integration, cost per channel, and performance.

Using two channels simultaneously on the Proteus Arbitrary Waveform Transceiver, we again transmit 200MHz pulses of RF energy from CH1 and CH2. We then adjust in real-time the delay between each channel to emulate the angle of arrival, plus to emulate how a radar mode would behave we increase the PRI to emulate what would happen as it approaches the target.

See how Direct-to-RF Waveform Generation simplifies complex Quantum Experiments by eliminating the need for IQ modulation and extensive calibration. This video demonstrates the use of the multi-channel Proteus unit to create up to 22 channels of direct-to-microwave signals, including 4 GHz control pulses for qubit manipulation.

Operating Quantum Computing requires the generation, capture, and analysis of highly accurate multiple modulated RF signals, in order to set up and read out the Quantum state of a single Qubit. As the number of qubits grows, the quantum layer interfacing demands highly integrated RF signal generator and acquisition systems. These systems must be capable of supporting many tens of channels in a high-density, low-cost per channel platform, incorporating the local, real-time signal processing power necessary to close the loop quantum computing requires. This webinar will introduce the latest developments in Direct-To/From-Microwave equipment and architectures resulting in a much simpler quantum layer control and an important cost and size reduction.

See the Proteus Arbitrary Waveform Transceiver perform real-time streaming in the X-Band (up to 12 GHz), a critical capability for radar development. This demonstration shows the generation of Continuous Wave (CW) and rapidly-switching random frequencies, with the ability to adjust frequency, amplitude, and pulse shape on the fly using the instrument's high-speed transfer rate.

Do you need to characterize a wideband amplifier or DAC for WiFi 6/7 (802.11), 5G, 6G, or even Ultra-wideband (UWB)?
In this video we show how to optimize a wideband multi-tone signal, achieving a Spurious Free Dynamic Range (SFDR) of -80dBc.

If you need to understand the intermodulation performance of your amplifier or characterize the Effective Number of Bits (ENOB) of your Digital to Analog Converter (DAC) then the Tabor Proteus RF Arbitrary Waveform Generator has both the bandwidth and the dynamic range for your most demanding measurement applications.

For more information contact [email protected]

Witness the unboxing and setup of the Proteus Series PXIe module, available as an Arbitrary Waveform Generator (AWG) or an Arbitrary Waveform Transceiver (AWT). The video details the module's specifications, including sampling rates up to 9 GS/s, up to 16 GB of memory, and its ability to combine a generator and digitizer for a full feedback control system in a PXIe chassis.

Speaker info: Mark Elo, Jon Netzer, Joan Mercade (please add everyone’s Bio)

Abstract:

The need for faster and faster data rates in cellular systems creates a number of design challenges for analog RF engineers, especial those designing amplifiers or transmitter output stages. The underlying dominant cellular transmission technology is Orthogonal Frequency Division Multiplex (OFDM), and while it has excellent multipath resilience, things become more problematic as you increase the throughput of the transmission. Wider bandwidths mean more modulated carriers and this will inevitably increase the peak to average ratio of the signal. High peak signals will cause intermodulation distortion, which then generates spectral regrowth, adjacent channel interference, and a deterioration of the EVM performance.

In this session we will talk about various amplifier stimulus signals that will help you get the most insight into how your amplifier is going to perform. Stating with fundamentals of a two-tone stimulus through to the use of multi-tones with various phase relationships that allow you to stress the amplifier deterministically. Then we will look at the OFDM signal and how different test signals for 4G, 5G, and WiFi are employed to create peak signals causing different types of spectral regrowth. We will also discuss how to reduce spectral regrowth with techniques such as waveform clipping and envelope tracking.

We’ll discuss some theory, some practical aspects and have a number of measurement demonstrations, using analog signal generators and arbitrary waveform generators. You will gain some great insights and come away with some solid techniques on how to make effective measurements and fully understand how to get the most performance out of your amplifier and output stage.

More experiments from the Tabor Lab. In this short video we put an antenna on a Teledyne Lecroy Oscilloscope and captured to 2.5GHz of instantaneous bandwidth and recorded it to a file. We then loaded the file into the Tabor Proteus P9082M arbitrary waveform generator and played it back. We’ve zoomed in on a specific WLAN carrier and you can see packets flying through the ether in the time domain while observing the time correlated RF spectrum.

In this demonstration we compare Analog IQ modulation to Digital IQ modulation. Advances in DAC technology now means that many chips support direct to RF capability, with built in Oscillators (Numerically Controlled) and IQ modulation capability. The new Proteus Arbitrary Waveform Generator from Tabor has this capability with a usable bandwidth up to 8GHz supported by multiple Nyquist zone operation. The tasks of balancing and nulling are no longer required using this approach, thus reducing setup time and maintenance of complex calibration tables and procedures.

PXI Cards & Chassis Introduction

Explore how Tabor Electronics delivers modular flexibility and precision with PXI-based test platforms — showcasing easy installation and replacement of PXI cards inside hybrid chassis for scalable, robust test rigs. The video highlights our commitment to user-friendly, high-performance instrumentation solutions that adapt to evolving project demands. A brief yet compelling look at how our hardware empowers engineering teams to build flexible, future-proof test systems.

Take a look at the features of the Proteus Desktop Platform in this unboxing video, highlighting its embedded PC functionality. This demonstration covers connecting external peripherals and outlines the instrument's specifications, including sampling rates up to 9 GS/s, various channel configurations, and the proprietary Wave Design Studio software.

Discover the Proteus Arbitrary Waveform Generator/Transceiver (AWT) in this benchtop unboxing video. The demonstration highlights its key features, including sampling rates up to 9 GS/s, up to 12 channels, and the option to integrate a digitizer for closed-loop, arbitrary waveform transceiver (AWT) applications.

The signals used in today’s most advanced communication technologies can employ various modulation and multiplexing techniques to optimize different parameters, such as spectral efficiency, susceptibility to interference, and data rate.

Correspondingly, these signals can have widely varying Peak-to-Average Power Ratios (PAPRs). Careful consideration must be taken with regard to PAPR. If it is too high, it can lead to spectral spreading or regrowth. However, lowering power can lead to less efficient operation of critical components like power amplifiers.

This webinar explains how to use advanced arbitrary waveform generators to create signals with varying PAPRs and how to simply and cost-effectively measure PAPR utilizing RF peak power sensors throughout an RF transmission chain to make trade-offs for optimal system performance.

This seminar covers microwave control systems, which include methods of synthesis, pulse shaping, and modulation techniques used in both semiconductor and photon based qubits. We will also cover analog signal generation techniques common in many systems today, plus direct to microwave digital signal generation and measurement based on new DAC and ADC technology. - TEST

The Proteus RF Arbitrary Waveform Generator/ transceiver, our new 20GHz Amplifier (A10200), and the new Boonton RTP5006/8 Real-time USB peak power sensors. The solution for next-generation wireless systems applications such as 5G and WiFi6 (802.11ax).

In this webinar we'll review the RF test requirements of different applications areas like 5G, Phase-Array Radar or Quantum Computing where tens of RF signals must be generated, acquired and analyzed simultaneously, often in real-time conditions, and where traditional VSAs and VSGs are not a good match. These applications require a precise timing and phase control of each one of the involved signals, a convenient integration architecture, and an excellent cost per channel. We'll demonstrate possible solutions with the new Proteus AWT (Arbitrary Waveform Transceiver), emphasizing the benefits and advantages for your day to day work, such as direct to/from RF/uW capabilities, scalable architecture supporting tens of simultaneous coherent transmitters and receivers, a user-customizable internal FPGA, and low cost per channel. The event is a part of the RF Technology Event. After registering for the event, you'll receive the email to register for the webinar. The event was hosted by our partners acal bfi, Eindhoven (NL).

Resource Hub

Tutorials

Real Time Wideband Microwave Measurement Feedback and Control

Real-time wideband measurement and adaptive control are critical in quantum research, advanced communications, automotive sensing, and electronic warfare. By integrating high-fidelity RF generation with wideband ADCs and FPGA processing, an AWT can capture, analyze, and update waveforms instantly. This enables faster, more precise testing in the most demanding high-bandwidth environments.

Option	Description
4M1	4GS Memory option
8M1	8GS Memory option
DO1	9GHz BW Direct Output
DJ1	Dynamic Jump Control
MRK1	x4 Extra Markers
LTJ1	Ultra Low Trigger Jitter (200ps typ.)
G1	Low Waveform Granularity
TRG	Faster trigger input (50MHz instead of 10MHz)
AWT	5.4GS/s Single, 2.7GS/s Dual Channel 12 Bit Digitizer option
STM	Up to 6GS/s Streaming capability
FPGA PROG	High level FPGA programming using built in DSP blocks and SCPI commands
Shell Core	Programmable FPGA with open core for user embedded IP
WE	1 year warranty extension (standard warranty 3 years)
