9GS/s 8Bit, 4GS Mem 4CH 16 Markers AWG

The Proteus P9084D, is a 9GS/s, four channel arbitrary waveform generator packaged in a 4U, half 19” dedicated chassis, offering technologically advanced options and configurations that integrate the ability to transmit, receive and perform digital signal processing all in a single instrument. The P9084D offers industry leading performance Including an innovative task oriented programming, real time data streaming, fast feedback loop for environment dependent waveform generation and user customizable FPGA for application specific solutions.

Relevant Documents
Data Sheet(440 KB)
  • Four channel 9GS/s 8 bit AWG & AWT configurations
  • 8GHz bandwidth, 2.7GS/s 12 bit digitizer option for feedback control system and conditional waveform generation
  • Excellent phase noise and spurious performance
  • Integrated NCO for digital up-converting to microwave frequencies
  • Space efficient desktop platform, with USB 3.0, 10G Ethernet and thunderbolt high speed interfaces.
  • Up to 16GS waveform memory with the ability to simultaneously generate and download waveforms
  • Real time data streaming directly to the FPGA for continuous and infinite waveform generation
  • User customizable FPGA for application specific solutions
  • Innovative task oriented sequence programming for maximum flexibility to generate any imaginable scenario

Compact and space efficient

The desktop version of the Proteus series offers up to 12 channels in a 4U, half 19” dedicated chassis. The compact form size and small footprint saves valuable bench space. So for synchronized, phase coherent, multi-channel applications such as quantum physics and radar applications the Proteus arbitrary waveform transceiver is an ideal, space efficient and cost effective solution.

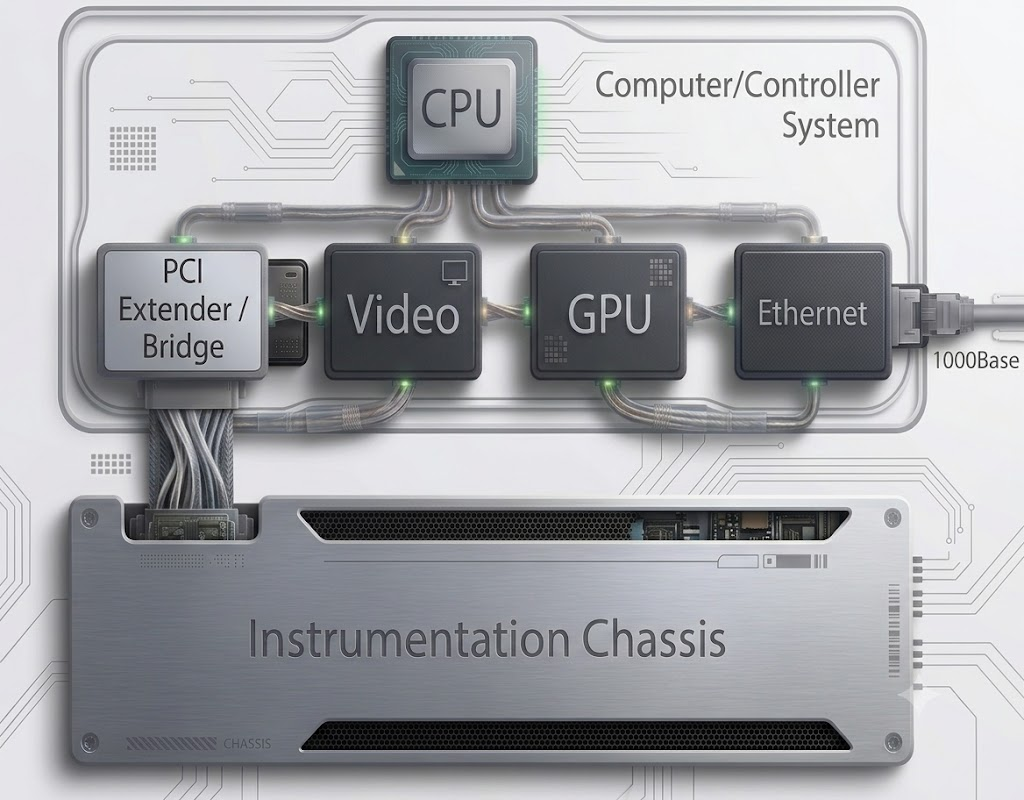

Extra-fast communication interface

Spending more time setting up your generated scenario than actually running it? The Proteus desktop platform offers the fastest standardized communication interfaces commonly available in PCs today. These include USB3.0 and 10GE interfaces as well as, a thunderbolt 3 interface which enables up to 40Gb/s of data transfer speed. These enable the user to easily connect to the Proteus arbitrary waveform transceiver and still offer some of the fastest waveform download available on the market today, saving you one of your most valuable resources, time.

Feedback control system

Many of today’s applications, require conditional waveform generation depending on input signals from the environment. The Proteus arbitrary waveform transceiver flawlessly integrates both DAC and ADC in one system, controlled by a single FPGA for optimal synchronization and minimum latency. This high speed control system provides a feedback loop for fast decision making on the fly with minimum latency.

Generate any imaginable scenario

The new series offers an innovative task oriented sequence programming where user can change the full instrument set up at every line of the task table. In addition, not only can users of the Proteus series instruments generate and download waveforms simultaneously, they can stream data directly to the FPGA without the need to use the built in memory. This enables generating random, unique and infinitely long scenarios directly from the controlling PC at DAC speeds of up to 6GS/s. So no matter whether your scenario is extremely complex, infinite or even dynamic you can generate it with the Proteus series model.

Model Description
P9084D 9GS/s 14Bit, 4GS Mem 4CH 16 Markers



Options

Option Description
4M3 4GS Memory option
8M3 8GS Memory option
16M2 16GS Memory option
DO3 9GHz BW Direct Output
DJ3 Dynamic Jump Input
IM1  Interpolation Mode
MRK3 x8 Extra Markers
LTJ3 Ultra Low Trigger Jitter (200ps typ.)
G3 Low Waveform Granularity
AWT 5.4GS/s Single, 2.7GS/s Dual Channel 12 Bit Digitizer
STM  3GS/s Streaming
PROG High level FPGA programming capability through desicion
blocks of built-in Demodulation & digital Filters
Shell Open core integration to allow simple FPGA control & programming

TBolt  Rear panel Thunderbolt3 USB (type C)
SFP+  Rear panel 10G optical SFP+ connectivity (replace the LAN)



Note: Options and Accessories must be specified at the time of your purchase.

Please choose the type of content that you need
Download Type
Description
Version
Release Date

Data Sheets
Ver. 3.22
18/05/2021
Software
Ver. 1.4.890
22/07/2021
Manuals
Ver. 1.1
26/05/2021
Manuals
Ver. 1.0
14/02/2021
Manuals
Ver. 1.1
04/05/2021
Software
Ver. 1.1.130
27/05/2021
Firmware
Ver. 1.119
09/06/2021
Software
Ver. 1.1
26/05/2021
