Model LSX4092B

40GHz Dual Channel MW Benchtop Signal Generator

The Lucid-X is a small footprint modular microwave signal generator that is available in multiple form factors, including Desktop, PXIe module, benchtop, rackmount, and portable. It has been designed to provide low phase noise, with a frequency range all the way up to 40GHz.

Fast switching speed, <10μs
Coherent frequency switching
AM, FM, PM, Sweep & Pulse Modulation
Phase Noise of -133dBc/Hz @1GHz and 10@kHz offset
LAN, USB, and SPI integrated interfaces

Relevant Documents

Data Sheet

View Options and Ordering Information

Related Downloads

Brochures and Data Sheets

Declaration of Conformity and Certificates

Documents and articles

Download Type

Description

Version

Release Date

Software

Lucid Control Panel (97 MB)

Ver. 1.3.550

27/03/2025

Manuals

Lucid-X Benchtop User Manual (909 KB)

Ver. 1.0

12/12/2024

Software

Update Tool (91 MB)

Ver. 1.1.280

27/03/2025

Data Sheets

Lucid-X Series Datasheet (13 MB)

Ver. 1.9

14/01/2026

Manuals

Lucid-X Programming Manual (619 KB)

Ver. 1.1

20/02/2025

Manuals

Update Tool User Manual (908 KB)

Ver. 1.3

31/03/2025

Manuals

Lucid Control Panel User Manual (4 MB)

Ver. 1.2

31/03/2025

Features

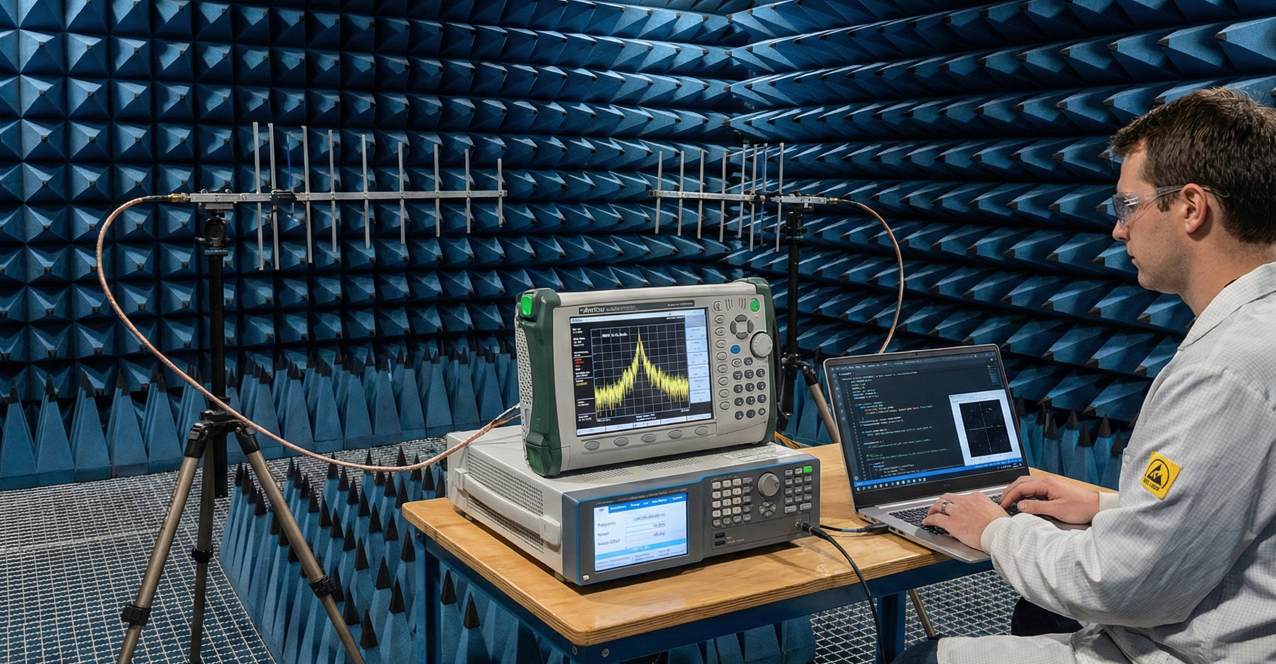

Signal Integrity and Purity

The Lucid-X family establishes a new benchmark for spectral purity, delivering exceptionally low phase noise across a frequency range extending up to 40 GHz. Engineered to meet the rigorous demands of Local Oscillators, Intermodulation Distortion measurement systems, and high-performance DAC/ADC clocking, the LSX ensures signal integrity in critical applications. It boasts impressive phase noise specifications at a 10 kHz offset: -148 dBc/Hz at 100 MHz, -133 dBc/Hz at 1 GHz, and -114 dBc/Hz at 10 GHz. With harmonics at -50 dBc and non-harmonics at -90 dBc, the Lucid-X delivers the precision required for the most challenging RF and Microwave applications.

Fast Frequency Switching

The 10us frequency switching capability is a critical specification for the LSX. In manufacturing environments, rapid switching minimizes "dead time" during automated testing, significantly increasing throughput and lowering the cost of testing. It is also essential for simulating modern real-world environments—such as frequency-hopping radars, electronic warfare threats, and secure communication protocols like Bluetooth or military radios—where signals must change pulse-to-pulse to avoid detection or interference. Ultimately, fast switching allows engineers to perform fast measurements without compromising accuracy.

Analog and Pulse Modulation

What makes the Lucid-X family of signal generators stand out is its analog modulation capability. It is equipped with built-in AM, FM, PM, and Sweep modulation features, allowing for versatile signal simulation required in analog communication systems. Specifically, it offers Frequency Modulation (FM) with maximum deviations up to 10 MHz and rates up to 1 MHz, Amplitude Modulation (AM) with linear depth up to 90% and rates up to 100 kHz, and Phase Modulation (PM) with a peak deviation of 360 degrees. Additionally, the instrument supports outstanding Pulse Modulation with a high on/off ratio (typically 70dB) and extremely fast rise/fall times of less than 15 ns, ensuring precision for radar and electronic warfare applications.

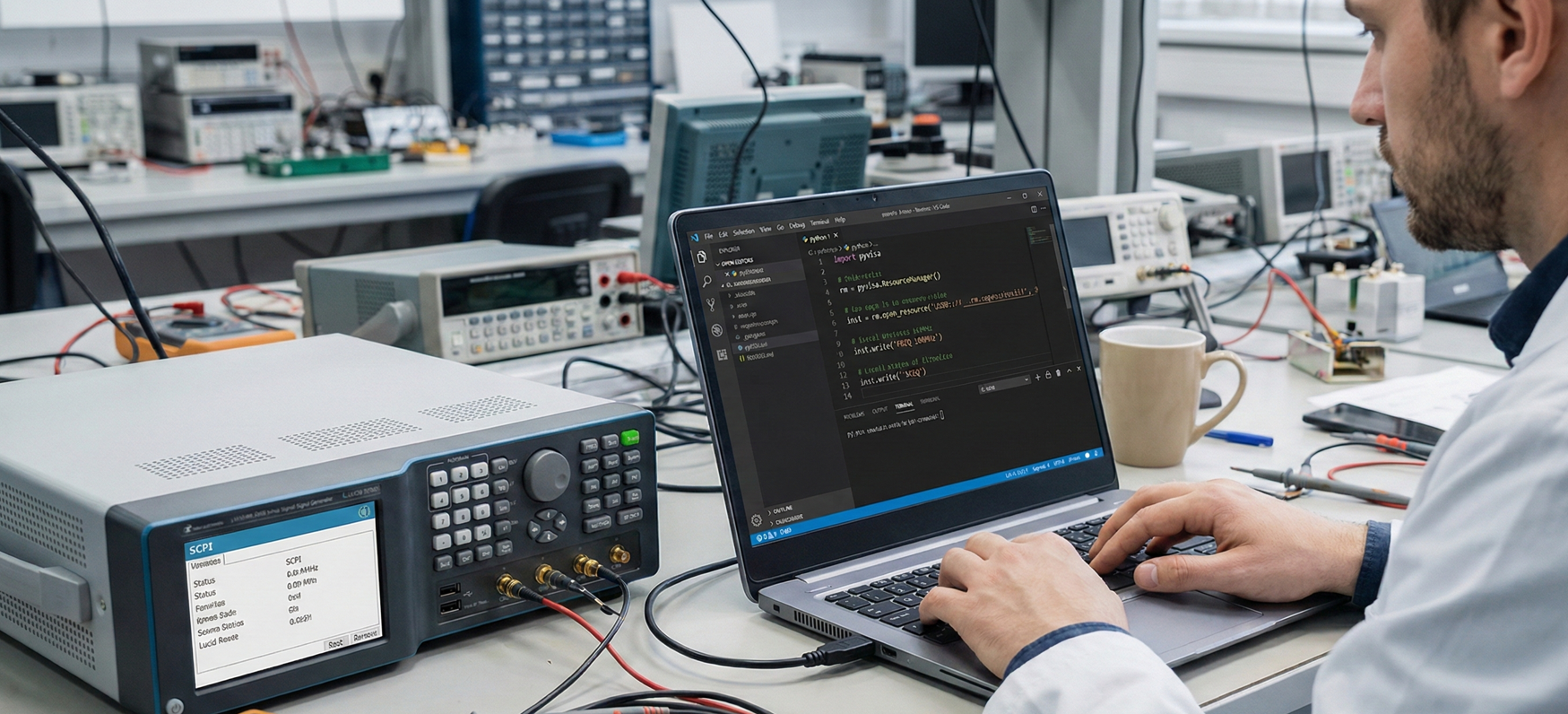

Control and Programming

Designed for flexibility, Tabor’s Lucid-X utilizes industry-standard SCPI and VISA architecture to ensure seamless remote control across any interface. Whether connecting via LAN or USB, you can easily integrate the unit using Python, MATLAB, C#/C++, or NI tools like LabVIEW. For added convenience, the included virtual front panel provides an intuitive graphical interface for control locally or across your network.

The Lucid RF analog signal generators Series offers the most advanced features and industry leading performance in the most compact form factor. The series feature 3, 6 and 12 GHz single channel versions, fast switching speed, superior signal integrity and purity, all the necessary modulated signals for analog communication systems and built in SPI and micro-USB interface. For synchronized, phase coherent, multi-channel applications such as quantum physics and phased array antennas the Benchtop platform is an ideal, high performance and cost-effective solution. The Desktop platform offers all the functionality of a fully featured full-size RF analog signal generator in the smallest footprint module available on the market. Its small size enables using it as a desktop unit or easily scaling up to hundreds of channels, while keeping the required space to a minimum, let it be 3, 6, and 12 GHz, excellent signal quality and integrity and fast switching speeds.

This tutorial shows how significant cost savings can be achieved by using digitizers (ADC) in multiple Nyquist zones. We use the Tabor Proteus P9082M Arbitrary Waveform Generator with an optional 5.4GS/s analog to digital converter, transforming the AWG into an Arbitrary Waveform Transceiver, (AWT).

We use the Lucid 12GHz RF Signal Generator (also available in 3GHz and 6GHz models) to generate tones up to 10GHz and show how to measure the signal and understand the trade-offs such as amplitude roll-off.

Watch how Tabor Electronics’ Lucid signal generator makes RF-FM field measurements simple and efficient — generating a modulated 2 GHz FM signal and demonstrating real-world performance. This quick demo highlights Lucid’s power, precision and portability — perfect for engineers and test teams needing fast, reliable RF measurements in-field or in the lab. Lucid is available in 3GHz, 6GHz and 12 GHz models.

Learn how to make RF signals in the field with this unboxing of the portable Lucid Series RF Signal Generator. The video highlights the unit's 10-inch touchscreen, up to two hours of battery life for field use, and all essential interfaces for a truly portable RF signal source.

Discover the new Tabor Electronics Lucid Series — our sleek, multi-channel RF signal generators designed for maximum flexibility and precision. The video showcases how Lucid delivers industry-leading analog RF performance in a compact package, making it ideal for modern test benches and scalable system deployments. A concise corporate introduction to how Lucid empowers engineers with top-tier signal generation for communications, radar, and research applications.

This demonstration shows how easy IM3 measurements are with the new Lucid 4 Channel Analog Signal Generator. With its compact design, measuring intermodulation products on a Mini-Circuits RF/IF & Microwave Components mixer did not take a rack of equipment! CH3 is the LO set to 5GHz 15dBm. CH1 and CH2 provide two tones at 10MHz and 12MHz with an amplitude of -5dBm. Lucid is available in 3GHz, 6GHz, and 12 GHz models. And has 1 Channel, 2 Channel, and 4 Channel configurations.

The Benchtop version of the Lucid series offers up to 4 phase coherent channels in a 2U 19” benchtop box. With a 5” touch display and front panel control buttons the Benchtop platform enables users to program the instrument without the need of an external PC.

Discover how to boost your RF signal generator output power with the A10200 RF Amplifier. This unboxing and setup video introduces the compact amplifier, which provides up to +30 dBm output power and operates across a wide frequency range from 100 kHz to 20 GHz.

In this fun video, we created a ‘backyard’ measuring range. We demonstrate constructive and destructive wave interference, and how it is used for beam-forming applications – using the Lucid LS1294R rack mount multi-channel signal generator. Beam-forming allows you to electronically direct RF energy in a certain direction, by adjusting the phase and amplitude of each carrier wave, which ultimately improves the ‘signal to noise ratio’. Beam-forming is used extensively in modern communications systems, such as LTE, 5G, Wi-Fi (802.11), as well as military systems such as AESA Radars and next generation jamming systems.

Tabor Quantum Starter Pack

Mark Elo, Chief Marketing Officer, introduces the Proteus 1.25 Gsample/s Arbitrary Waveform Generator and the Lucid 12 GHz RF Signal Generator to create a quantum control and readout system.

Do you want to reduce your Quantum experiment costs, and make your budget go further?

The Tabor Quantum Starter Pack – consisting of a combo of a high performance arbitrary waveform generator (AWG) and RF signal Generator. You can create shaped pulses with any phase and up to 12GHz of frequency range with the combination of the Tabor Proteus AWG and the Tabor Lucid RF Signal Generator.

Tabor has a full range of Quantum Control and Readout solutions, in multiple form factors, if you want to control one Qubit or 10,000 Qubits. Tabor has been helping the physics community for over 20 years and we have the solutions and the expertise to help you get your experiment, running and delivering results that may exceed your expectations!

To learn more contact [email protected]

The signals used in today’s most advanced communication technologies can employ various modulation and multiplexing techniques to optimize different parameters, such as spectral efficiency, susceptibility to interference, and data rate.

Correspondingly, these signals can have widely varying Peak-to-Average Power Ratios (PAPRs). Careful consideration must be taken with regard to PAPR. If it is too high, it can lead to spectral spreading or regrowth. However, lowering power can lead to less efficient operation of critical components like power amplifiers.

This webinar explains how to use advanced arbitrary waveform generators to create signals with varying PAPRs and how to simply and cost-effectively measure PAPR utilizing RF peak power sensors throughout an RF transmission chain to make trade-offs for optimal system performance.

This seminar covers microwave control systems, which include methods of synthesis, pulse shaping, and modulation techniques used in both semiconductor and photon based qubits. We will also cover analog signal generation techniques common in many systems today, plus direct to microwave digital signal generation and measurement based on new DAC and ADC technology. - TEST

In this webinar we'll review the RF test requirements of different applications areas like 5G, Phase-Array Radar or Quantum Computing where tens of RF signals must be generated, acquired and analyzed simultaneously, often in real-time conditions, and where traditional VSAs and VSGs are not a good match. These applications require a precise timing and phase control of each one of the involved signals, a convenient integration architecture, and an excellent cost per channel. We'll demonstrate possible solutions with the new Proteus AWT (Arbitrary Waveform Transceiver), emphasizing the benefits and advantages for your day to day work, such as direct to/from RF/uW capabilities, scalable architecture supporting tens of simultaneous coherent transmitters and receivers, a user-customizable internal FPGA, and low cost per channel. The event is a part of the RF Technology Event. After registering for the event, you'll receive the email to register for the webinar. The event was hosted by our partners acal bfi, Eindhoven (NL).

Resource Hub

Solution Notes

Signal Amplifiers - Application Note

There are several considerations one must take into account when deciding to acquire a new signal amplifier. The following tutorial will address the topics which are most related to Tabor’s line of signal amplifiers as well and will provide tips for selecting the most suitable amplifier for your application. It will also explain how each of the topics would influence the amplifier’s performance.

Tutorials

Different Types of Signal Generators and Their Applications

A quick look at some of the most common signal generators used to produce waveforms, frequencies, radio frequencies (RF), digital patterns, etc.

White Papers

Advanced Microwave Topics for Quantum Physicists

In this article, we’ll review the Quantum setup architecture, in regards to arbitrary waveform generators, and the fundamental role they have in the process of controlling quantum bits, qubit measurement, and analysis.

We will review and explain the fundamentals of wave propagation, impendence matching and transmission, passive frequency translation, and how the properties of nonlinear frequency summation devices such as mixers - can help modify the signals' frequency. We’ll cover Modulation and the process of encoding information on to generated frequency – and we will look at AM and Phase Modulation and how they are combined in a vector modulator. We will look at both analog and digital implementations of modulation, and Signal Analysis.

Applications

Radar systems STALO

Today we performed a successful integration of our new LSX modular signal generator as a Radar systems STALO. (Stable Local Oscillator) We pointed the bean at a water tower 20 miles away and initial checks were good! With integrated LAN control, excellent phase noise, 10us switching time and coherent frequency switching the LSX is becoming a logical choice for Radar systems.

Similar Products

Model LSX8081X

8GHz Single Channel PXIe Microwave Signal Generator

Model LSX1491X

14GHz Single Channel Microwave Signal Generator

Model LSX2091X

20GHz Single Channel PXIe Microwave Signal Generator

Model LSX8081D

8GHz Single Channel Desktop Microwave Signal Generator

Model LSX8081P

8GHz Single Channel Microwave Signal Generator

Model LSX4091X

40GHz Single Channel PXIe Microwave Signal Generator

Model LSX1491D

14GHz Single Channel Microwave Signal Generator

Model LSX1491P

14GHz Single Channel Microwave Signal Generator

Model LSX2091D

20GHz Single Channel Microwave Signal Generator Module

Model LSX2091P

20GHz Single Channel Portable MW Signal Generator

Model LSX4091D

40GHz Single Channel Microwave Signal Generator Module

Model LSX4091P

20GHz Single Channel Portable MW Signal Generator

Model LSX8081B

8GHz Single Channel Microwave Signal Generator

Model LSX8082B

8GHz Single Channel Microwave Signal Generator

Model LSX8081R

8GHz Single Channel Microwave Signal Generator

Model LSX8084B

8GHz Four Channel Microwave Benchtop Signal Generator

Model LSX8082R

8GHz Dual Channel Microwave Signal Generator

Model LSX8084R

8GHz Four Channel Microwave Signal Generator

Model LSX1491B

14GHz Single Channel Microwave Signal Generator

Model LSX1492B

14GHz Single Channel Microwave Signal Generator

Model LSX1494B

14GHz Single Channel Microwave Signal Generator

Model LSX2091B

20GHz Single Channel MW Benchtop Signal Generator

Model LSX1491R

14GHz Single Channel Microwave Signal Generator

Model LSX2092B

20GHz Dual Channel MW Benchtop Signal Generator

Model LSX1492R

14GHz Dual Channel Microwave Signal Generator

Model LSX2094B

20GHz Four Channel MW Benchtop Signal Generator

Model LSX1494R

14GHz Four Channel Microwave Signal Generator

Model LSX4091B

40GHz Single Channel MW Benchtop Signal Generator

Model LSX2091R

20GHz Single Channel MW Signal Generator 19" 1U Rack

Model LSX4092B

40GHz Dual Channel MW Benchtop Signal Generator

Model LSX2092R

20GHz Dual Channel MW Signal Generator 19" 1U Rack

Model LSX4094B

40GHz MW Benchtop Signal Generator

Model LSX2094R

20GHz Four Channel MW Signal Generator 19" 1U Rack

Model LSX4091R

40GHz Single Channel MW Signal Generator 19" 1U Rack

Model LSX4092R

40GHz Dual Channel MW Signal Generator 19" 1U Rack

Model LSX4094R

40GHz Four Channel MW Signal Generator 19" 1U Rack

Frequently bought together

Model P1282M

1.25GS/s 16Bit 1GS Mem 2CH 4 Markers AWG/AWT

Model P1282D

1.25GS/s 16Bit 1GS Mem 2CH 4 Markers AWG

Model P1282B

1.25GS/s 16Bit 1GS Mem 2CH 4 Markers AWG

Model P1284M

1.25GS/s 16Bit 1GS Mem 4CH 4 Markers AWG

Model P1284D

1.25GS/s 16Bit 1GS Mem 4CH 4 Markers AWG

Model P1284B

1.25GS/s 16Bit 1GS Mem 4CH 4 Markers AWG

Model A10200

20GHz 30dBm RF Signal Amplifier

EureQa

8GHz Quantum Control System

Model P2582M

2.5GS/s 16Bit 1GS Mem 2CH 8 Markers AWG

Model P1288D

1.25GS/s 16Bit 1GS Mem 8CH 8 Markers AWG

Model P1288B

1.25GS/s 16Bit 1GS Mem 8CH 8 Markers AWG

Model 3202

PXIe based Dual Channel 20GHz 30dBm RF amplifier

Model P2584M

2.5GS/s 16Bit 1GS Mem 4CH 8 Markers AWG

Model P12812D

1.25GS/s 16Bit 1GS Mem 12CH 12 Markers AWG

Model P12812B

1.25GS/s 16Bit 1GS Mem 12CH 12 Markers AWG

Model P9082M

9GS/s 8Bit, 4GS Mem 2CH 8 Markers AWG

Model P2582D

2.5GS/s 16Bit 2GS Mem 2CH 8 Markers AWG

Model P2582B

2.5GS/s 16Bit 2GS Mem 2CH 8 Markers AWG

Model P2584D

2.5GS/s 16Bit 2GS Mem 4CH 8 Markers AWG

Model P2584B

2.5GS/s 16Bit 2GS Mem 4CH 8 Markers AWG

Model P9482M

9GS/s 16Bit 8GS Mem 2CH 8 Markers RF AWG Module

Model P2588D

2.5GS/s 16Bit 2GS Mem 8CH 16 Markers AWG

Model P2588B

2.5GS/s 16Bit 2GS Mem 8CH 16 Markers AWG

Model P9484M

9GS/s 16Bit 8GS Mem 4CH 8 Markers RF AWG Module

Model P25812D

2.5GS/s 16Bit 2GS Mem 12CH 24 Markers AWG

Model P25812B

2.5GS/s 16Bit 2GS Mem 12CH 24 Markers AWG

Model P9082D

9GS/s 8Bit, 4GS Mem 2CH 8 Markers AWG

Model P9082B

9GS/s 8Bit, 4GS Mem 2CH 8 Markers AWG

Model P9084D

9GS/s 8Bit, 4GS Mem 4CH 16 Markers AWG

Model P9084B

9GS/s 8 Bit, 4GS Mem 4CH 16 Markers AWG

Model P9086D

9GS/s 8Bit, 4GS Mem 6CH 24 Markers AWG

Model P9086B

9GS/s 8 Bit, 4GS Mem 6CH 24 Markers AWG

Model P9482B

9GS/s 16Bit 8GS Mem 2CH 8 Markers RF AWG Desktop

Model P9484D

9GS/s 16Bit 8GS Mem 4CH 8 Markers RF AWG Desktop

Model P9484B

9GS/s 16Bit 8GS Mem 4CH 8 Markers RF AWG Benchtop

Model P9488D

9GS/s 16Bit 8GS Mem 8CH 8 Markers RF AWG Desktop

Model P9488B

9GS/s 16Bit 8GS Mem 8CH 16 Markers RF AWG Benchtop

Model P94812D

9GS/s 16Bit 8GS Mem 12CH 8 Markers RF AWG Desktop

Model P94812B

9GS/s 16Bit 8GS Mem 12CH 24 Markers RF AWG Benchtop

Ordering Info

Model	Description
LSX4092B	40GHz Dual Channel Microwave Benchtop Signal Generator

Options

Option	Description	Models⁽¹⁾
MOD	Modulation package (AM, FM, PM)	X/R/B/D/P
LP	Low power option -70 dBm. Included for B/R/X.	D/P
ELP1	1 channel, extended low power range. Not available for 4 channels.	B/R
ELP2	2 channels, extended low power range. Not available for 4 channels.	B/R
EPR1	1 channel, extended power range -130dBm to +27dBm. Not available for 4 channels.	B/R
EPR2	2 channel, extended power range -130dBm to +27dBm. Not available for 4 channels.	B/R
PLS	Pulse modulation	X/R/B/D/P
PAT	Pattern modulation	X/R/B/D/P
FS	Fast switching 100 µs	X/R/B/D
UFS	Ultra-fast switching 10 µs	B/R
BAT	4-cell, replaceable extra battery 39 Wh	P
BAT2	4-cell, replaceable extra battery 98 Wh	P
CHA	External charger	P
LAN	USB Ethernet adapter	P
W-RACK	Rack-mount kit	B/R
WE	1-year warranty extension (standard warranty 3 years)	X/R/B/D/P

⁽¹⁾ X/R/B/D/P=PXIe/Rackmount/Benchtop/Desktop/Portable.

Accessories

Name	Description
W-Rack	19" Single Rack Mounting Kit
Case Kit	Professional Carry Bag

Note: Options and Accessories must be specified at the time of your purchase.
