20GHz Single Channel Portable MW Signal Generator

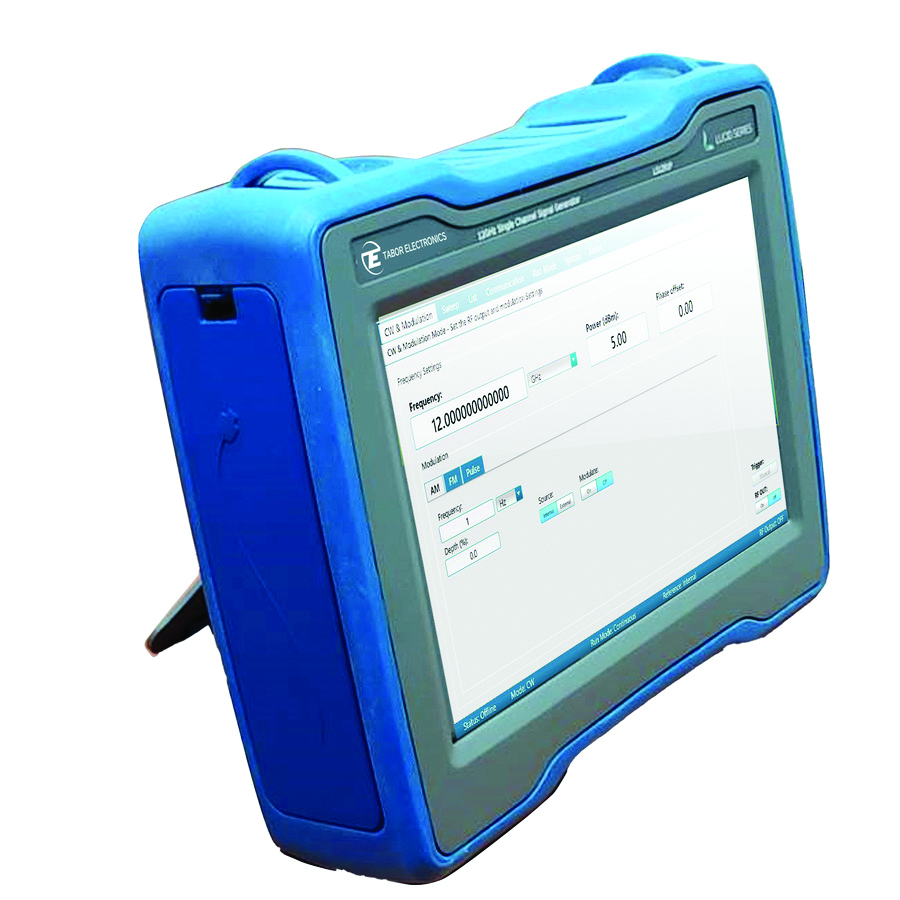

The LSX2091P is a 20GHz Single Channel Microwave Signal Generator that offers industry leading performance, in a modern tablet like design that can be used as a benchtop or portable unit. It features exceptionally fast switching speed, superior signal integrity and purity and all the necessary modulated signals for analog communication systems. The portable design with a 10” touch screen offers excellent performance and meet today’s most demanding applications, whether in the lab or out in the field.

Relevant Documents
Data Sheet(1 MB)
  • 20GHz Single Channel Microwave signal generator
  • Frequency Resolution of 0.001Hz
  • Phase noise of -134dBc/Hz at 1GHz, and -115dBc/Hz at 10GHz, at 10kHz carrier offset
  • Max amplitude 10dBm Calibrated, 15dBm Settable
  • Min amplitude -50dBm Calibrated, -70dBm Settable
  • Amplitude Resolution of 0.01dB
  • AM, FM, PM, Sweep & Pulse Modulation
  • Field ready, with 10” touch screen suited for day and night use and 1 hour battery operation
  • Remotely programmable via MATLAB, Python, LabVIEW and other software programming environments.
  • Removable uSD card for instrument security






Signal Integrity and Purity

The Lucid-X Microwave Signal Generator family has a Frequency Resolution of 0.001Hz Phase noise of -134dBc/Hz at 1GHz, Max amplitude of +17dBm.

Modulation Schemes and Frequency/Amplitude List/Sweep

AM, FM, PM, and Pulse modulation – internal and external. Programmable Frequency and Amplitude List and sweep tables.

Fast Switching

The instrument can change amplitude and frequency within a 100us. Contact Tabor for UFS (<20us)

SCPI programmability over multiple interfaces

The instrument is controlled via SCPI and has LAN and USB-C interfaces.





Model Description
LSX2091P 20GHz Single Channel Portable Microwave Signal Generator



Option Description Models(1)
MOD Modulation package (AM, FM, PM) X/R/B/D/P
LP Low power option -70 dBm. Included for B/R/X. D/P
ELP1 1 channel, extended low power range. Not available for 4 channels. B/R
ELP2 2 channels, extended low power range. Not available for 4 channels. B/R
EPR1 1 channel, extended power range -130dBm to +27dBm. Not available for 4 channels. B/R
EPR2 2 channel, extended power range -130dBm to +27dBm. Not available for 4 channels. B/R
PLS Pulse modulation X/R/B/D/P
PAT Pattern modulation X/R/B/D/P
FS Fast switching 100 µs X/R/B/D
UFS Ultra-fast switching 20 µs B/R
BAT 4-cell, replaceable extra battery 39 Wh P
BAT2 4-cell, replaceable extra battery 98 Wh P
CHA External charger P
LAN USB Ethernet adapter  P
W-RACK Rack-mount kit B/R
WE 1-year warranty extension (standard warranty 3 years) X/R/B/D/P

  (1) X/R/B/D/P=PXIe/Rackmount/Benchtop/Desktop/Portable.
