Model WW1071

100MS/s Single-Channel Arbitrary Waveform Generator

The 1071 system represents a new dimension in arbitrary waveform generator design. With an unprecedented combination of arbitrary generator and synthesizer, versatility, high resolution and wide frequency range, and outstanding performance-to-price ratio, the 1071 delivers diverse benefits that will facilitate tasks in many fields.
Related Documents
Highlights Features Specifications Ordering Info Downloads Reviews
  • Single Channel 100MS/s waveform generator
  • 1M standard waveform memory (2M/4M option)
  • Sine waves to 50MHz, Square to 30MHz
  • SINE OUT to 100MHz, 1Vp-p into 50Ω
  • 11 Built-in popular standard waveforms
  • 10Vp-p into 50Ω, double into high impedance
  • 14 Bit amplitude resolution
  • 11 digits frequency resolution (limited by 1µHz)
  • AM, FM, Arbitrary FM, FSK, Ramped FSK modulation
  • Comprehensive memory management
  • Linear and logarithmic sweep
  • 1 ppm clock accuracy and stability
  • User friendly and menu driven 3.8” color LCD display
  • LAN, USB and GPIB interfaces
  • Multi-Instrument synchronization
  • Free ArbConnection software, IVI and MATLAB drivers


100MS/s Sample Rate

New technology requirements are driving communications systems to use increasingly narrow channel widths. A high sample rate of 100MS/s makes the WW1072 an ideal modulation source for troubleshooting new encoding schemes. The WW1071 also provides high-speed waveforms to simulate signal distortion, video signals, component failures, and power supply line cycle dropouts and transients.

High Performance

The WW1071 delivers precise waveforms with 14 bits of amplitude resolution and up to 14 digits of frequency resolution from remote with extremely low phase noise. Exceptional electrical performance includes up to 10Vp-p into 50Ù over the full frequency range. Selectable filters ensure clean stimulus waveforms enabling the generator to simulate modulation waveforms

14 Bit Resolution

The 14-bit resolution provides 16,384 output levels. This means that even audio waveforms can be generated with excellent fidelity. It also allows video-and other complex waveforms-to be generated with small details superimposed on large signals, in order to test the response of receiving systems.

Function Generator

When used as a simple function generator the instrument offers ten basic waveforms with adjustable parameters all of which are accessible from the front panel. These are sine, triangle, square, pulse, ramp, sinc, Gaussian, exponential (up and down), noise, as well as DC. Sine and square waves can be generated at up to 50MHz.

Up to 4M Waveform Memory

The WW1071 offers 1M word memory standard and 2M or 4M word optional for arbitrary waveforms. In addition, the memory can be divided into as many as 2048 segments, which can be looped and linked in many different ways. Using 4M word at 100MS/s to generate a video signal, for example, the duration is 0.04 seconds, 25Hz, even without any looping of repetitive elements.

Sequence Generator

When the sequencing facilities are employed, the WW1071’s uniqueness is obvious. The memory segments can be linked and repeated in any combination both manually and under programmed control. This allows test software to switch between many different waveforms rapidly without the need to download multiple times, enhancing test throughput in a way that is unmatched by competing products. The sequence generator has four advanced modes: automatic, stepped, single and mixed, which make it even a more powerful tool.

High-Quality Modulation Signal Source

One of the many attractive features of the WW1071 is the sample clock modulation function. In ordinary arbitrary waveform generators, to make a frequency modulated sine wave you have to enter the complete mathematical function. Not so with the WW1071: all that is necessary is generating the carrier signal, and then modulating the clock to obtain the required result. The sample clock modulation can be done using internal waveforms such as sine, square, triangle, and ramp or using downloaded arbitrary modulating waveforms. This allows you to generate signals that would be difficult or impossible to define using an equation. AM, Linear and Logarithmic Sweeps, FSK and Ramped FSK are available as well.

Triggering Facilities

However versatile the waveform generation systems are made, the need for external control of generation is vital. The triggering facilities of the WW1071 match the generation functions in versatility. In the simplest mode, signals are output continuously. The WW1071/2 also offers the triggered mode, gated mode, external burst mode, and internal burst mode, all of which can use an external trigger signal or an internal trigger. The use of external sources to prompt the switching of segments has already been mentioned.

Easy to use

Large and user-friendly 3.8” back-lit color LCD display facilitates browsing through menus, updating parameters and displaying detailed and critical information for your waveform output. Combined with numeric keypad, cursor position control and a dial, the front panel controls simplify the often complex operation of an arbitrary waveform generator.

High Speed Access

Access speed is an increasingly important requirement for test systems. Included with the instrument is a variety of interfaces: LAN, USB and GPIB so one may select the interface most compatible to individual requirements. Using any of the external interfaces, controlling instrument functions and features as well as downloading waveforms and sequences is fast, time saving and easily tailored to every system regardless if it is just a laptop to instrument or full-featured ATE system. IVI drivers and factory support will speed up system integration thus minimizing time-to-market and reduce system development costs significantly.

Multiple Environments to Write Your Code

Model WW1071 comes with a complete set of drivers, allowing you to write your application in various environments such as: Labview, CVI, C++, VB and MATLAB. You may also link the supplied dll to other Windows based API’s or, use low level SCPI commands (Standard Commands for Programmable Instruments) to program the instrument, regardless if your application is written for Windows, Linux or Macintosh operating systems.

Multi-Instrument Synchronization

Multiple WW1071/2s can be synchronized using a Master-Slave arrangement allowing users to benefit from the same high quality performance in their multi-channels needs.


ArbConnection is a graphical tool that provides an unlimited source of Arbitrary Waveforms. With the ArbConnection software you can control instruments functions, modes and features. You can also create a virtually infinite amount of test waveforms. Freehand sketch allows you to draw your own custom waveform for quick analysis of analog signals. You can use the built-in equation editor to create your own exotic functions. Add or subtract components of a Fourier series to characterize digital or analog filters or inject random noise into a signal to test immunity to auxiliary noise.

Standard Waveforms
Arbitrary Waveforms
Sequenced Arbitrary Waveforms
Common Characteristics
Run Modes
Trigger Characteristics
Multi-Instrument Synchronization


WW1071 100MS/s Single-Channel Arbitrary Waveform Generator



Option 1 2M Memory
Option 2 4M Memory



R-Sync Cable For Multiple Instrument Synchronization
S-Rack mount 19" Single Rack Mounting Kit
D-Rack mount 19" Dual Rack Mounting Kit
Case Kit Professional Carry Bag


Note: Options and Accessories must be specified at the time of your purchase.

Download Type
Drivers USB Driver for the entire Wonder Wave Series , PM8571, PM8572, WS8101, WS8102 and WS8251

Compatible with Windows 7 and 10
(32 & 64 Bit)
Ver. 2
Download (2.4 Mb)
Drivers IVI and MatLAB driver for models WW5061, WW5062, WW1071 and WW1072 (32 bit OS)

Application development environments: MATLAB, LabVIEW, LabWindows/CVI, Visual C, Visual Basic
Ver. 1.1.18
Download (8.0 Mb)
Drivers IVI and MatLAB driver for models WW5061, WW5062, WW1071 and WW1072 (64 bit OS)

Application development environments: MATLAB, LabVIEW, LabWindows/CVI, Visual C, Visual Basic
Ver. 2.0.3
Download (8.5 Mb)
Third Party NI-VISA Software (Runtime) 16/06/2015
Ver. 14.0.1
Download (70.9 Mb)
Software ArbConnection 4.3 - Windows 7 Compatible (for SE5082 download version 4.4) 15/06/2015
Ver. 4.3.207
Download (10.4 Mb)
Tutorials How to Generate a Sweep (WW) 01/08/2014
Ver. 1.0
Download (755.3 Kb)
Tutorials How to Generate an FSK Modulation (WW) 01/08/2014
Ver. 1.0
Download (880.3 Kb)
Solution Notes DTMF (Dual-Tone Multi Frequency) 15/03/2014
Ver. 1.0
Download (400.1 Kb)
Solution Notes Cold Atoms 15/03/2014
Ver. 1.0
Download (428.4 Kb)
Solution Notes HDD Power-on 15/03/2014
Ver. 1.0
Download (422.7 Kb)
Solution Notes Motion Control 15/03/2014
Ver. 1.0
Download (472.9 Kb)
Tutorials How to Simply Upgrade A Tabor Device Firmware 15/03/2014
Ver. 1.0
Download (648.2 Kb)
Tutorials How to Simply Generate a Sequence 15/03/2014
Ver. 1.0
Download (903.4 Kb)
Tutorials How to Simply Install and Connect to ArbConnection 15/03/2014
Ver. 1.0
Download (1.0 Mb)
Tutorials How to simply Generate an Arbitrary Waveform 15/03/2014
Ver. 1.0
Download (854.2 Kb)
Tutorials How to Simply Generate a Pulse 15/03/2014
Ver. 1.0
Download (590.2 Kb)
Tutorials How to Simply Generate a Standard Waveform 15/03/2014
Ver. 1.0
Download (622.1 Kb)
Tutorials How to Simply Connect WW, WS & PM Series via USB 15/03/2014
Ver. 1.0
Download (646.5 Kb)
Tutorials How to Simply Connect Tabor Units via GPIB/LAN 15/03/2014
Ver. 1.0
Download (376.8 Kb)
Manuals Manual for ArbConnection 4.x 29/07/2010
Ver. 1
Download (4.9 Mb)
Firmware Standard Firmware update for models WW5061 and WW1071 03/04/2010
Ver. 1.67
Download (162.6 Kb)
Firmware Special Firmware update for WW5061 and WW1071 with the Digital Pulse option.
(This firmware, enables the new digital pulse feature, while removing access to the sequencer panels from the front panel).
Ver. 1.67P
Download (163.8 Kb)
Data sheet Data Sheet for model WW1071 12/11/2007
Ver. F
Download (330.2 Kb)
Software NetConfig - Firmware upload utility 09/01/2006
Ver. 1.0.5
Download (4.5 Mb)
Manuals Manual for models WW1071 / WW1072 29/05/2005
Ver. A
Download (5.2 Mb)

Customer Reviews

Help Your Friends lead the way, by sharing your experience with them.

Tabor Electronics takes great pride its quality and invites you to help your colleagues by reviewing our products!

Be the first to review this product.
Write a review

Frequently Bought Together:

Model 9100 300Vp-p Single-Channel Signal Amplifier
Model 9100A 400Vp-p Single-Channel Signal Amplifier
Model 9250 30MHz Differential / Dual-Channel Signal Amplifier
Single Unit Kit All units but WS835x and the WX Series
Carry Bag (Small) All units but WS835x and the WX Series

Similar Products:

Model WS8101 100MHz Single-Channel Arbitrary Function Generator
Model WW1072 100MS/s Dual-Channel Arbitrary Waveform Generator

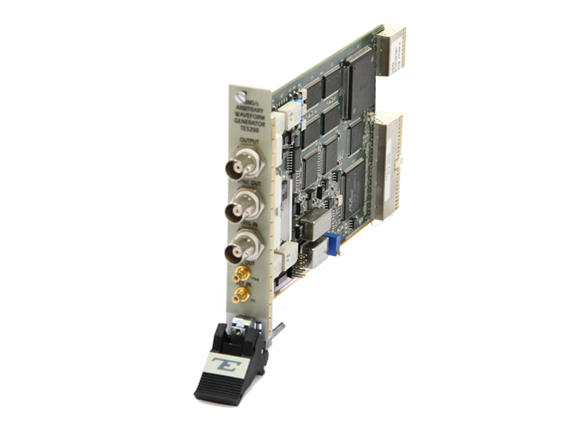

Model 5201 125MS/s PXIBus Arbitrary Waveform Generator
