Model 9100A

400Vp-p Single-Channel Signal Amplifier

Model 9100A was designed as a general purpose, wide band and high voltage amplifier however, with specific applications in mind. It is built in a small case size to save space and cost but without compromising bandwidth and signal integrity.
Related Documents
Highlights Features Specifications Ordering Info Downloads Reviews
  • Single channel
  • High voltage output to 400Vp-p (±200V)
  • Output current to 125 mA
  • Full power bandwidth from DC to >500kHz
  • Slew rate to 400V/µs
  • Monitor Output
  • Precise signal amplification for multiple applications
  • Compatible with any of the Tabor waveform generators

Solve Common Problems

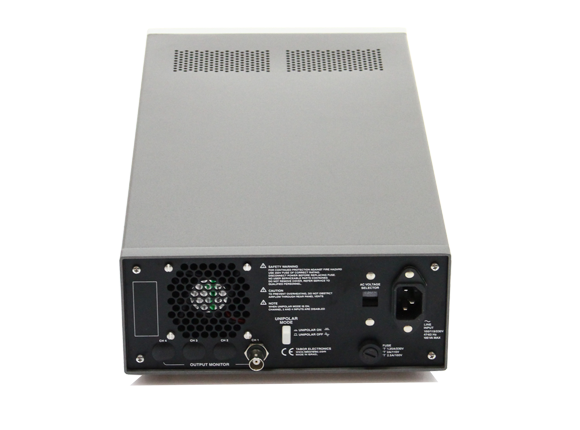

Model 9100A can output signals from -200V to +200V with continuous currents up to 125mA. The output is driven from a 0.1? source and, with some degradation of its bandwidth, can drive capacitive loads up to 1nF, while maintaining its full amplitude range. Model 9100A has a rear-panel monitor output that divides the main output signal by 100 for applications that require monitoring of the output signal with low voltage sensors.

Target Applications

The amplifier case was designed to stack on top or below other Tabor products. It can also be mounted alongside a Tabor generator in a standard 19" rack. The waveform-amplifier combo is an ideal solution for virtually any high-voltage, wide bandwidth application.

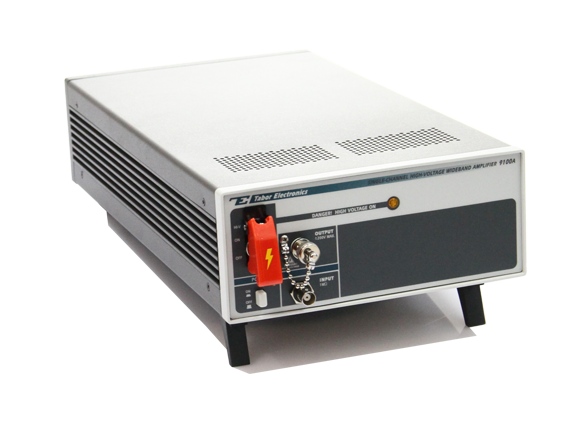

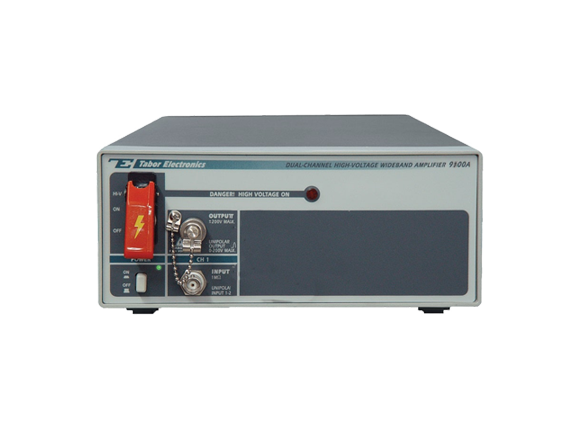

Safety played a major role during the design of the Model 9100A. The high voltage path to the amplifier circuit is blocked by a front panel mechanical switch and accidental application of high power to the UUT is prevented by a safety latch. The 9100A will output high voltage signals only after the safety latch has been lifted and the high voltage switch flipped to ON position. In emergency situations, one can hit the protective latch to immediately remove the high voltage power from the output terminals. As an additional visual safety feature, a red light glows on the front panel whenever the high voltage is turned on.

Input Characteristics
Output Characteristics
Output Monitor Characteristics


9100A-50(1) 400Vp-p Single-Channel Signal Amplifier



Gain 50 = x50, fixed(2)



S-Rack mount 19" Single Rack Mounting Kit
D-Rack mount 19" Dual Rack Mounting Kit
Case Kit Professional Carry Bag


(1) Standard configuration.

(2) Custom gain available upon request, however, bandwidth may change.

Note: Options and Accessories must be specified at the time of your purchase.

Download Type
Manuals User Manual for models 9100A, 9200A and 9400 27/01/2009
Ver. A
Download (517.7 Kb)
Data sheet Data Sheet for model 9100A 27/01/2009
Ver. A
Download (151.3 Kb)

Customer Reviews

Help Your Friends lead the way, by sharing your experience with them.

Tabor Electronics takes great pride its quality and invites you to help your colleagues by reviewing our products!

Be the first to review this product.
Write a review

Frequently Bought Together:

Model WS8101 100MHz Single-Channel Arbitrary Function Generator
Model WW1071 100MS/s Single-Channel Arbitrary Waveform Generator
Model PM8571A 50MHz Single-Channel Pulse Waveform Generator
Single Unit Wide Kit WS835x and WX Series
Carry Bag (Small) All units but WS835x and the WX Series

Similar Products:

Model 9200A 400Vp-p Dual-Channel Signal Amplifier
Model 9250 30MHz Differential / Dual-Channel Signal Amplifier
Model 9400 400Vp-p Four-Channel Signal Amplifier
