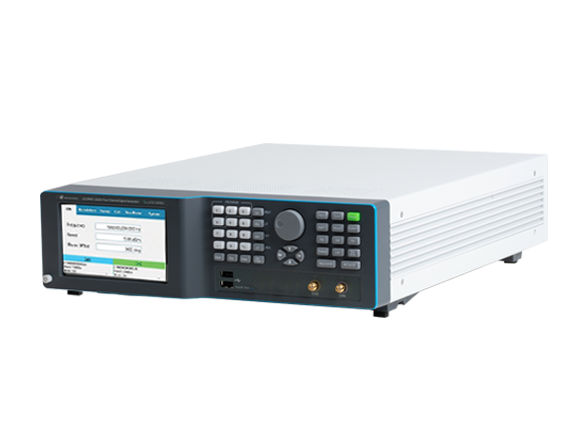

6GHz Single Channel Signal Generator

The LS6081B is a 6GHz Single Channel RF Analog Signal Generator, offers industry leading performance, in an easy to use benchtop box. It features exceptionally fast switching speed, superior signal integrity and purity and all the necessary modulated signals for analog communication systems. The design offers excellent performance and abilities combined with an affordable price tag, needed from the R&D benches to the production lines.

Relevant Documents
Data Sheet(770 KB)
  • 6GHz RF analog signal generator
  • Extremely Fast Switching speed of <100us
  • AM, FM, PM, Sweep & Pulse Modulation
  • Exceptionally Low Phase Noise of -145dBc/Hz @100MHz and 10@kHz offset
  • USB and LAN interfaces
  • Small form factor and space efficient benchtop platform
  • Remotely programmable via MATLAB, Python, LabVIEW and other software programming environments.
  • Removable SD card for instrument security
  • Easy to use benchtop platform with 5" touch screen and user friendly GUI

Extremely Fast Switching

In today’s world, time is a crucial factor, whether in design, on the production floor or inside ATE systems. With a switching speed of less than 100•µs, Tabor’s All-New Lucid Series ensures maximum measurements at minimum time, setting the industry’s highest throughput standard.

Signal Integrity and Purity

One of the most important requirement in today’s testing and measurement applications is high signal quality. With a typical SSB phase noise of -145dBc at 100MHz, and -132dBc at 1GHz, at 10 kHz carrier offset, Tabor’s All-New Lucid Series platform delivers one of the best quality signals available on the market today, answering the ever-growing demand for clear and precise signals.

Multiple Ways to Control the Unit and Write Your Code

Tabor’s Lucid Series comes with its own dedicated software to control the instrument functions, modes and features via a graphical user interface (GUI) as well as a complete set of drivers, allowing you to write your application in various environments including Labview, Python, CVI, C++, VB and MATLab. You may also link the supplied dll to other Windows-based API’s or use low-level SCPI commands to program the instrument, regardless of whether your application is written for Windows, Linux or Macintosh operating systems.

Modulation Schemes

Signal bursts and chirps have become common need in the daily life of any aerospace or defense application. With Tabor’s All-New Lucid Series, any pulse modulation is possible, no matter if its “narrow” or “standard” pulse need. On top of its outstanding pulse modulation performance, the Lucid Series is also equipped with many CW interferers, and modulated signals such as AM, FM, PM and Sweep.

Easy to use

Tabor’s Lucid series benchtop platform offers a 5” touch screen with user friendly GUI to quickly and easily generate the required signal, while displaying all the necessary critical information to the user. For remote control, the series is equipped with Ethernet and USB interface enabling remote programming from PC.

Model Description
LS6081B 6GHz Single Channel RF Analog Signal Generator

Options

Option Description
PLS Pulse Gennerator
PAT Pattern Generator
ELP Extended Low Power (-150dBc)
EPR Extended Power Range (-130dBc to +27dB)
FS Fast Switching option 100us
EMU Emulator Pack includes emulators for Keysight, R&S, Anapico & Holzworth
WE 1 year warranty extension (standard warranty 3 years)

Accessories

Name Description
W-Rack  19" Single Rack Mounting Kit
Case Kit Professional Carry Bag

Note: Options and Accessories must be specified at the time of your purchase.
