Model LS3081P

3GHz Single Channel Portable Signal Generator

The LS3081P, 3GHz Single Channel RF Analog Signal Generator, offers industry leading performance, in a modern tablet like design that can be used as a benchtop or portable unit. The LS3081P features exceptionally fast switching speed, superior signal integrity and purity and all the necessary modulated signals for analog communication systems. The LS3081P was designed to offer excellent performance and meet today’s most demanding applications, whether in the lab or out in the field.
Related Documents
Highlights Features Specifications Ordering Info Downloads Reviews
  • 3GHz RF analog signal generator
  • AM, FM, PM, Sweep & Pulse Modulation
  • Exceptionally Low Phase Noise of -145dBc/Hz @100MHz and 10@kHz offset
  • Field ready, with 10” touch screen suited for day and night use and 2 hour battery operation
  • Remotely programmable via MATLAB, Python, LabVIEW and other software programming environments.
  • Removable uSD card for instrument security

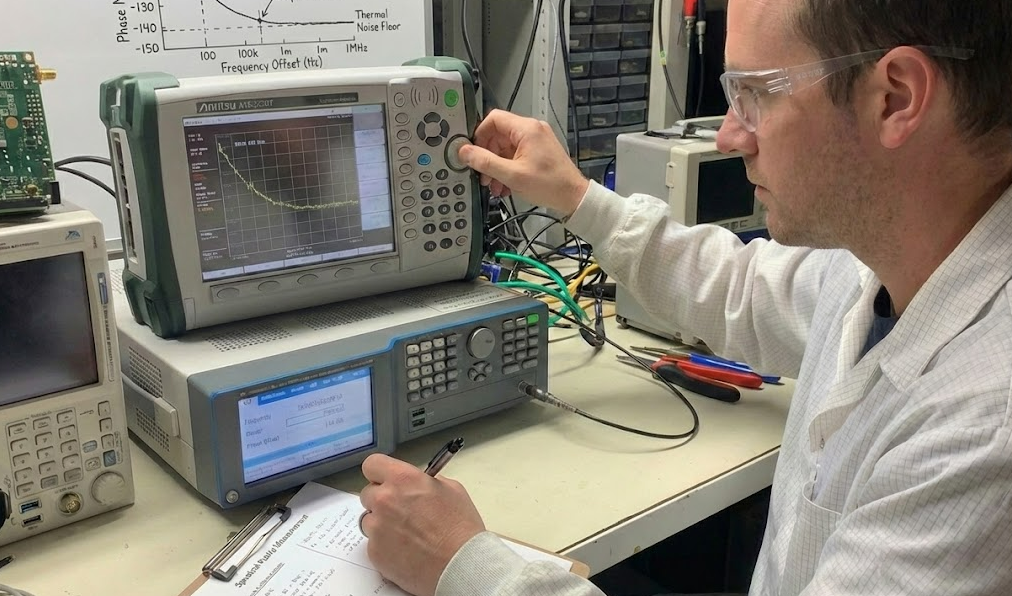

Signal Integrity and Purity

One of the most important requirement in today’s testing and measurement applications is high signal quality. With a typical SSB phase noise of -145dBc at 100MHz, and -132dBc at 1GHz, at 10 kHz carrier offset, Tabor’s All-New Lucid Series platform delivers one of the best quality signals available on the market today, answering the ever-growing demand for clear and precise signals.

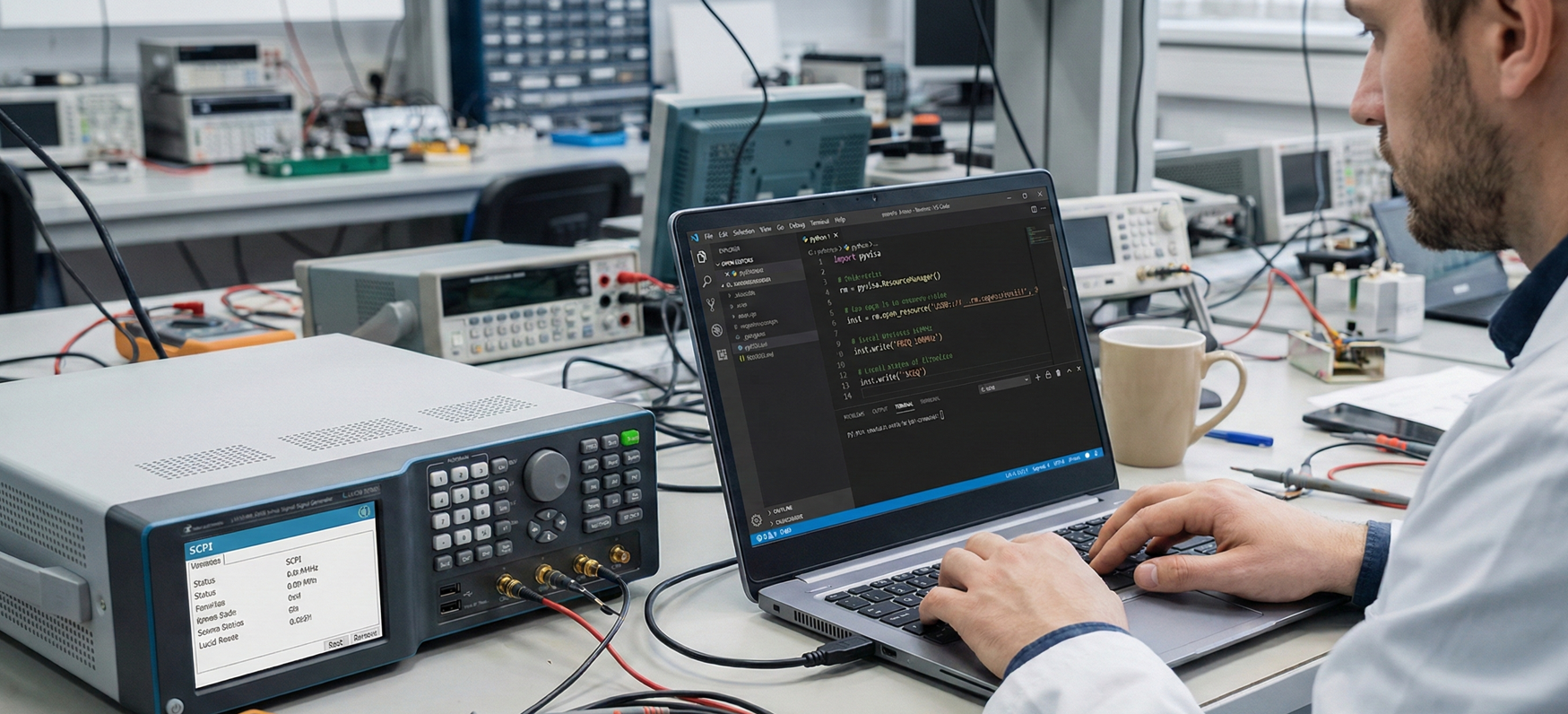

Multiple Ways to Control the Unit and Write Your Code

Tabor’s Lucid Series comes with its own dedicated software to control the instrument functions, modes and features via a graphical user interface (GUI) as well as a complete set of drivers, allowing you to write your application in various environments including Labview, Python, CVI, C++, VB and MATLab. You may also link the supplied dll to other Windows-based API’s or use low-level SCPI commands to program the instrument, regardless of whether your application is written for Windows, Linux or Macintosh operating systems.

Modulation Schemes

Signal bursts and chirps have become common need in the daily life of any aerospace or defense application. With Tabor’s All-New Lucid Series, any pulse modulation is possible, no matter if its “narrow” or “standard” pulse need. On top of its outstanding pulse modulation performance, the Lucid Series is also equipped with many CW interferers, and modulated signals such as AM, FM, PM and Sweep.

Multi-channel, phase coherent, benchtop generator

Many test systems and experimental setups require multiple RF channels, either separate or synchronized. The new Lucid series benchtop platform offers up to 4, separate or phase coherent, RF outputs in a single, 2U, ¾ 19” box, saving up to 4 times that space compared to available benchtop solutions on the market. Tabor’s all-new Lucid series benchtop version saves both valuable bench or rack space and investment capital without compromising performance.

Easy to use

Tabor’s Lucid series portable platform offers a 10” touch screen with user friendly GUI to quickly and easily generate the required signal, while displaying all the necessary critical information to the user. For remote control, the series is equipped with a built-in USB interface enabling remote programming from PC. For those requiring LAN interface a USB to LAN converter can be provided.

Phase Noise

3GHz Single Channel Signal Generator


Option SD

Removable SD memory card


4-cell, replaceable battery

Ruggedized Case Ruggedized Case
Emulator Pack Includes emulators for Keysight, R&S, Anapico & Holzworth


Note: Options and Accessories must be specified at the time of your purchase.

Download Type
Manuals Lucid Portable User Manual 10/08/2020
Ver. 1.0
Download (2.9 Mb)
Data sheet Data Sheet Lucid Portable 06/08/2020
Ver. 2
Download (1.6 Mb)
Drivers IVI driver for models LS308XP, LS608XP, LS129XP 64bit 08/07/2020
Ver. 1.1.0
Download (6.4 Mb)
Software Lucid Setup - 1.2.1 31/05/2020
Ver. 1.2.1
Download (80.2 Mb)
