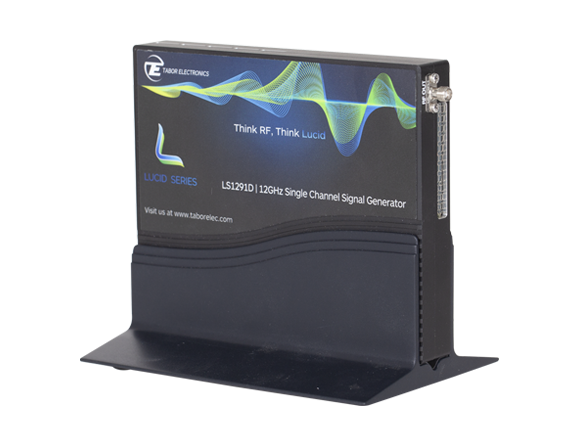

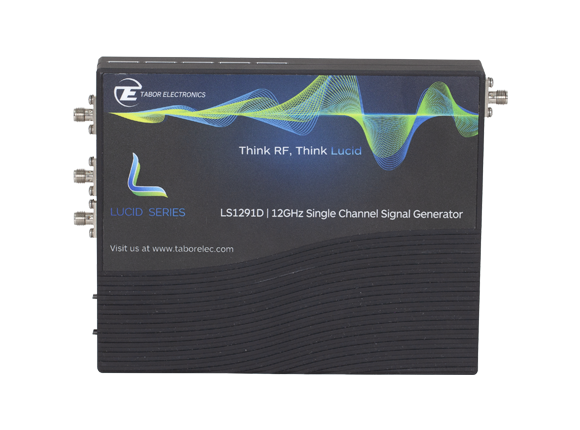

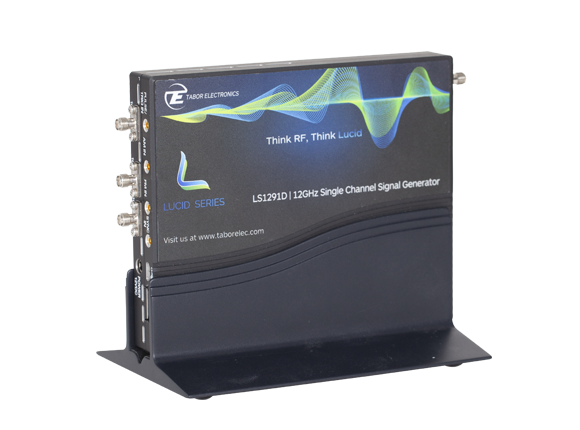

Model LS1291D

12 GHz RF Analog Signal Generator Module

The LS1291D, 12GHz Single Channel RF Analog Signal Generator, offers industry leading performance, combined with a compact small footprint form factor. The LS3081D features exceptionally fast switching speed, superior signal integrity and purity and all the necessary modulated signals for analog communication systems. The LS1291D is designed to meet today’s most demanding specifications, needed from the R&D benches to the production lines.
Related Documents
Highlights Features Specifications Ordering Info Downloads Reviews
  • 12GHz RF Analog Signal Generator
  • Extremely fast switching speed of <100μs
  • AM, FM, PM Sweep & Pulse Modulation
  • Extra small, compact module platform
  • Exceptionally Low Phase Noise of -145dBc/Hz @100MHz and 10@kHz offset
  • SPI and micro-USB integrated interfaces
  • Remotely programmable via MATLAB, Python, LabVIEW
  • and other software programming environments.
  • Flixible modular platform for OEM and custom requirements
  • and applications, to satisfy specific customer demands.
  • Multi instrument synchronization capability

Extremely Fast Switching

In today’s world, time is a crucial factor,whether in design, on the production floor or inside ATE systems. With a switching speed of less than 100μs, Tabor’s All-New Lucid Series ensures maximum measurements at minimum time, setting the industry’s highest throughput standard.

Signal Integrity and Purity

One of the most important requirement in today’s test and measurement applications is high signal quality. With a typical SSB phase noise of -145dBc/Hz at 100MHz, and -132dBc/Hz at 1GHz, at 10 kHz carrier offset, Tabor’s All-New Lucid Series platform delivers one of the best quality signals available on the market today, answering the ever-growing demand for clear and precise signals.

Modulation Schemes

Signal bursts and chirps have become common need in the daily life of any aerospace or defense application. With Tabor’s All-New Lucid Series, any pulse modulation is possible, no matter if its “narrow” or “standard” pulse need. On top of its outstanding pulse modulation performance, the Lucid Series is also equipped with many CW interferers, and modulated signals such as AM, FM, PM and Sweep.

Multiple Ways to Control the Unit and Write your Code

Tabor’s Lucid Series comes with its own dedicated software to control the instrument functions, modes and features via a graphical user interface (GUI) as well as a complete set of drivers, allowing you to write your application in various environments including LabVIEW, Python, CVI, C++, VB and MATLAB. You may also link the supplied dll to other Windows-based API’s or use low-level SCPI commands to program the instrument, regardless of whether your application is written for Windows, Linux or Macintosh operating systems.

Phase Noise
Harmonics (dBc)



12GHz RF Analog Signal Generator Moduler


Option Pulse Pulse Modulation
Option LP Low Power option to -90 dBm
Option FS Fast Switching option 100us
Emulator Pack Includes emulators for Keysight, R&S, Anapico & Holzworth


Note: Options and Accessories must be specified at the time of your purchase.

Download Type
Manuals Lucid Desktop User Manual 10/08/2020
Ver. 1.2
Download (3.1 Mb)
Data sheet Data Sheet Lucid Desktop 06/08/2020
Ver. 2
Download (1.1 Mb)
Drivers IVI driver for models LS308XD LS608XD, LS129XD 64bit 08/07/2020
Ver. 1.1.0
Download (6.4 Mb)
Software Lucid Setup - 1.2.1 31/05/2020
Ver. 1.2.1
Download (80.2 Mb)

Customer Reviews

Help Your Friends lead the way, by sharing your experience with them.

Tabor Electronics takes great pride its quality and invites you to help your colleagues by reviewing our products!

Be the first to review this product.
Write a review

Similar Products:

Model LS3081P 3GHz Single Channel Portable Signal Generator
Model LS3081D 3 GHz RF Analog Signal Generator Module
Model LS3081B 3GHz Single Channel Signal Generator
