Signal Sources

RF Signal GeneratorLucid Series

Tabor is proud to introduce its new line of RF analog signal generators. The all-new Lucid Series offers the most advanced features and industry leading performance in the most compact form factor. The series feature 3, 6 and 12 GHz single channel versions, all sharing the very same industry leading highlighted features, in a compact, small footprint module. Featuring extremely fast switching speed, superior signal integrity and purity, all the necessary modulated signals for analog communication systems, with built in SPI and micro-USB interface, the Lucid Series is designed to meet today’s most demanding specifications, needed from the R&D benches to the production lines.

  • 3, 6 & 12GHz RF Analog Signal Generator
  • Extremely fast switching speed of <100μs
  • AM, FM, PM Sweep & Pulse Modulation
  • Extra small, compact module platform
  • Exceptionally Low Phase Noise of -145dBc/Hz @100MHz and 10@kHz offset
  • SPI and micro-USB integrated interfaces
  • Remotely programmable via MATLAB, Python, LabVIEW and other software      programming environments.
  • Flixible modular platform for OEM and custom requirements and applications, to satisfy specific customer demands.
  • Multi instrument synchronization capability

More info

Arbitrary Function GeneratorsWave Standard Series

The Wave Standard Series is a family of single and dual channel arbitrary function generators, designed to provide superior performance at a low price. The new series incorporates an easy to use built in waveform gallery and modulation schemes as well as a memory-based true arbitrary waveform generator architecture for accurate, jitter-free waveforms reaching frequencies of up to 350MHz. Packed into a compact and efficient rack mountable box, having all in one easy to use high performance unit, makes the Wave Standard series, by far, the best in its category (AFGs) for size, price and performance.

  • 100, 250 and 350MHz Arbitrary Function Generators
  • Single or Dual Channel Versions
  • Up to 16Vp-p into 50Ω, 32Vp-p into open circuit
  • Up to 2GS/s with up to 16-Bit and 512k arbitrary waveforms
  • Continuous, triggered, gate and burst modes
  • Powerful pulse/pattern composer for analog, digital and mixed signals
  • AM, FM, FSK, and PSK modulation
  • High-resolution 3.8” user-friendly color LCD display
  • Ethernet, USB and GPIB interfaces

More info

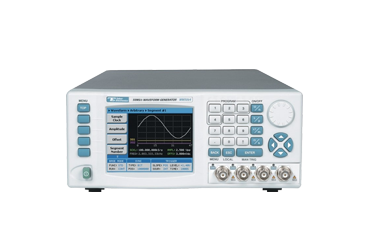

Arbitrary Waveform GeneratorsWonder Wave Series

The Wonder Wave Series line of arbitrary waveform generators breaks new ground by combining two technologies. While being a true, memory-based arbitrary waveform generator (AWG), with all of the memory management capabilities needed to create complex waveforms, it also implements a Direct Digital Synthesizer (DDS) enabling many standard modulation types and frequency agility capabilities. Superior and far more versatile the Wonder Wave Series exhibit performance and provide solutions to the most demanding test stimulus challenge.

  • 50, 100, 250, and 1,200MS/s Waveform Generators
  • Single, Dual or Four Channel Versions
  • Sine and Square waves generated to 400MHz
  • Up to 16 Bit Vertical Resolution
  • Up to 16M waveform memory, with sophisticated memory management
  • Up to 16Vp-p into 50Ω, 32Vp-p into open circuit
  • Extensive modulation schemes
  • High-resolution 3.8” user-friendly color LCD display
  • Ethernet, USB and GPIB interfaces
  • Built-in full-featured 120MHz, 7 digit Universal Counter Timer
  • Multi-Instrument synchronization

More info

High-Speed Arbitrary Waveform GeneratorsWaveXciter Series

Tabor’s all-new WaveXciter series offers unrivaled performance, even when compared to instruments designed to generate fewer types of signals or higher sampling rates. The WaveXciter can generate literally any waveform, at frequencies up to 1GHz with 8 digits of resolution and 1 point granularity, resulting in the highest precision signal creation and regeneration. Aside from its natural ability to generate arbitrary waveforms, the WaveXciter can also be used as a full-featured standard, modulation or pulse generator to solve various applications. Its affordable footprint saves space and cost without compromising bandwidth and signal integrity.

  • 1.25GS/s and 2.3GS/s, 14 bit, 16M/32M waveform generators
  • Single or dual channel, separate or synchronized with 10ps resolution
  • 1GHz sine and 500MHz square waves
  • Up to 4Vp-p into 50Ω, DC-Coupled
  • -20 to +10dBm, AC-Coupled paths
  • Extensive modulation capabilities with up to 1GHz CW
  • Powerful pulse/pattern composer for analog, digital and mixed signals
  • Advanced sequencer allows, stepping, looping, nesting and jumps
  • Built-in fast dynamic segments and sequences hop control
  • Store and recall on USB stick or 4GB internal flash memory
  • Two instrument synchronization to form a 4-channel system

More info

Arbitrary Microwave GeneratorsSignal Expert Series

Featured products:

Model SE5082

The new Signal Expert series introduces a whole new category of high end signal sources, Arbitrary Microwave Generators, or AMG. With an analog bandwidth of more than 7 GHz, the new Signal Expert series can reach frequencies much higher than its sampling rate. Combining this vast analog bandwidth with multi Nyquist zone operation the Signal Expert series is capable of solving applications well beyond baseband and into the microwave frequencies. This new technology combined with advanced arbitrary and sequencing capabilities, excellent spectral purity, configurable output modules, and advanced triggering make the new Signal Expert series the highest performing and most cost effective signal source of its class and even beyond.

  • Single or Dual channel 5Gs/s, 12 bit waveform generators
  • Extra wide analog bandwidth up to 7GHz
  • Extremely fast rise and fall time of under 150ps
  • Multi-Nyquist zone operation, up to the 4th Nyquist zone
  • 32M waveform memory and up to 64M memory optional
  • Independent or synchronized channels configurations
  • Advanced sequencer for step, loop, nest and jumpsscenarios
  • Various output amplifier modules utilized to solvenumerous applications
  • Built-in fast dynamic segments and sequences hop control
  • Multi instrument synchronization

More info

PRBS Generators

Pseudo-random binary sequence generators are often required for testing communications system components. The Tabor lines of high speed arbitrary and function generators offer a built in PRBS generator with amplitude up to 4Vp-p into 50Ω and up to 20Vp-p into 50Ω combined with the A10150 “Snap-On” accessory, both having fast rise and fall times and low jitter. In addition to the PRBS generator the Tabor AWG offers extensive arbitrary as well as built in modulation and pulse generation capabilities.

  • Up to 500MBit/s data rate
  • Up to 4 synchronized differential outputs
  • PRBS7, PRBS9, PRBS11, PRBS15, PRBS23, PRBS31 or user defined
  • Sequence length of up to 2^31
  • Up to 4Vp-p into 50Ω (20Vp-p into 50Ω combined with the A10150)
  • <1ns rise time
  • Powerful built in pulse/pattern composer
  • Extensive modulation capabilities with up to 1GHz CW
More info

Pulse Pattern GeneratorsPulse Master Series

Featured products:

Model PM8571AModel PM8572A

The Pulse Master is a Series of Single and Dual Channel Pulse/Waveform Generators that offers a complete array of pulse, standard, arbitrary, sequenced and modulated waveforms with unmatched performance, even compared to instruments designed to generate fewer types of signals. Its smart, compact, 2U 1/2 rack-width footprint allows designers and manufacturers to conserve substantial benchtop or rack space, while benefiting from high-performance, bandwidth, signal integrity, and reliability with the flexibility to adapt to a full spectrum of applications making the Pulse Master an important laboratory tool, both now and for many years to come.

  • 50 MHz Single or Dual Channel Pulse / Pattern generator
  • 100 MHz Function Generator for standard waveforms
  • 250 MS/s, 16Bit Arbitrary Waveform / Sequence Generator
  • 16-bit Digital Pattern Generator with programmable level
  • 10ps pulse resolution with 4ns transition time (3ns typical)
  • 32Vp-p into open circuit with programmable impedance
  • Internal AM, FM, FSK, ASK, PSK, PWM and sweep
  • External pulse width control
  • Waveforms transfer and storage through USB/CD/DVD
  • Ethernet, USB and GPIB interfaces
  • “Drop-in” Emulators for: Agilent 81101, Fluke 80/1, HP8116, HP8112, HP8160, HP8165, LeCroy LW410/420, Tabor 8500 and 8550/1
More info

Pulse / Function Generators

Featured products:

Model 8550Model 8551

Function generators are basic tools for any laboratory. The basic features and functions are common to most function generators that are available on the market, except Tabor offers the highest end of products with truly analog signals reaching frequencies up to 50MHz. Tabor also offers Pulse/Function Generators combo, in which most standard Function Generator features are preserved and some pulse capabilities are added.

  • Output frequency to 50 MHz
  • Amplitudes to 32 Vp-p
  • All popular waveforms including pulse and ramp
  • Independent rise/fall time control
  • Pulse width control to 10 ns
  • Extensive triggering and bust capabilities
  • FM, AM, PLL and sweep modulation
More info

Mixed Signal Word Generators

Tabor’s line of AWGs offers high performance and extremely versatile capabilities incorporating fully featured function, pulse, modulation and arbitrary generators into a single box solution. In addition, some of Tabor’s arbitrary waveform generators also offer digital outputs with the capability of generating both analog and digital signals simultaneously. With up to 32 bit word generation, and dedicated digital memory independent or synchronized to the analog output, the Tabor line of AWGs is a perfect tool for digital design, validation and verification.

  • 300MS/s, 1.2GS/s and 2.3 GS/s sampling rates
  • Up to 32M of arbitrary waveform memory
  • Up to four synchronized analog channels
  • 16 or 32 digital outputs
  • 300MB/s, 625MB/s or 1.15GB/s  data rate
  • Up to 16M of dedicated digital memory
  • Independent digital data generation or simultaneous digital representation of the analog output.
  • Complementary digital signal amplifiers
  • Up to 4Vp-p with programmable amplitude and offset control
  • Independent skew control of each bit with 10ps resolution

More info

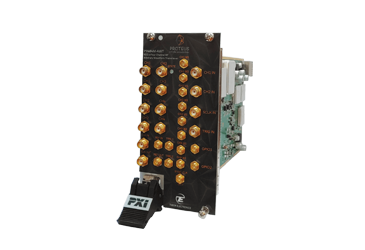

PCI & PXI Waveform Generators

PC-based instruments are gaining vast momentum in the industry. Tabor’s design is based on a very high level of integration, allowing it to implement its unique AWG technology in this platform easily. Being the bench models replica, the 5000 series set new standards in the PXI, cPXI and PCI class. It combines two technologies, making use of the best qualities from each of the types of generators allowing it to create complex waveforms, on one hand, and generating all the standard functions and modulation formats, on the other.

  • Sample rates to 250 MS/s
  • Amplitude spans to 10 Vp-p
  • Phase noise down to 130 dBc/Hz
  • AM, FM, FSK, PSK and sweep modulation
  • Memory length to 2 Meg
  • Memory segmentation and sequenced operation
  • Multi-instrument synchronization

More info
