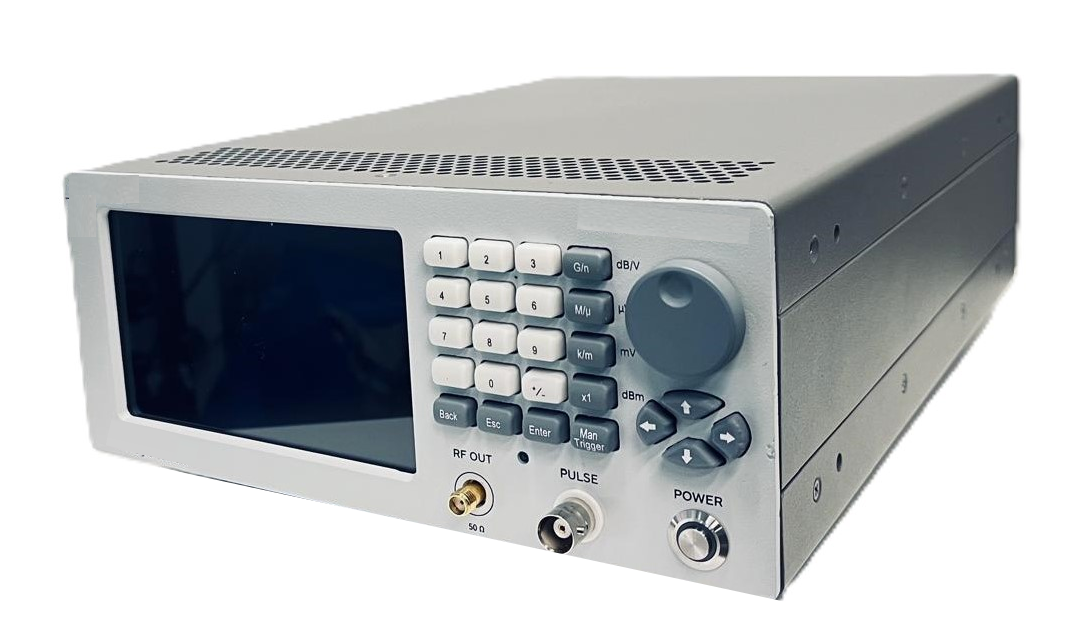

Model LSX4081B

4GHz Single Channel Microwave Signal Generator Module

The Lucid-X is a small benchtop footprint RF signal generator. wuthh teh highest performance in its class it is ideal for ATE and calibration set applications.

N-type or optional SMA connector
GP-IB Interface
AM, FM, PM, Sweep & Pulse Modulation
Phase Noise of -133dBc/Hz @1GHz and 10@kHz offset
10ns Rise Time Pulse Modulator
2U, Half Rack, with full rack-mount kit

View Options and Ordering Information

Related Downloads

Brochures and Data Sheets

Declaration of Conformity and Certificates

Documents and articles

Download Type

Description

Version

Release Date

Software

Lucid Control Panel (147 MB)

Ver. 1.3.559

30/04/2026

Manuals

Lucid-X Benchtop User Manual (909 KB)

Ver. 1.0

12/12/2024

Software

Update Tool (140 MB)

Ver. 1.1.291

02/12/2025

Manuals

Lucid Programming Manual (1002 KB)

Ver. 1.1

08/09/2024

Firmware

Lucid Benchtop FW update for FW ver 1.18.42 and above (13 MB)

Ver. 1.18.50

19/06/2023

Solution Notes

Signal Amplifiers - Application Note (3 MB)

Ver. 1.0

06/01/2021

White Papers

Tabor Lucid Multi-Channel RF Signal Generators (3 MB)

Ver. 1.0

19/06/2023

Data Sheets

LSX4081D Data Sheet (885 KB)

Ver. 1.95AR

12/07/2026

Data Sheets

Power Level Test Results (4 KB)

Ver. Ver 1.0

13/07/2026

Manuals

Repair and Service Manual (547 KB)

Ver. Ver: 0.7

13/07/2026

Data Sheets

Recomended Test Equipment (88 KB)

Ver. Ver: 0.9

13/07/2026

Manuals

LSX Periodic Calibration Manual (206 KB)

Ver. 0.5

01/07/2026

Manuals

LSX Periodic Validation Manual (629 KB)

Ver. 0.7

10/06/2026

Features

Metrology Grade Accuracy

The Lucid-X family has a frequency range of over 3GHz, with a resolution of 0.001 Hz. Amplitude Range of -90dBm to 17dBm with ±0.5 dB of accuracy. Harmonics of better than 30 dBc and a phase noise in excess of 125 dBc/Hz at 1GHz, 20kHz offset,

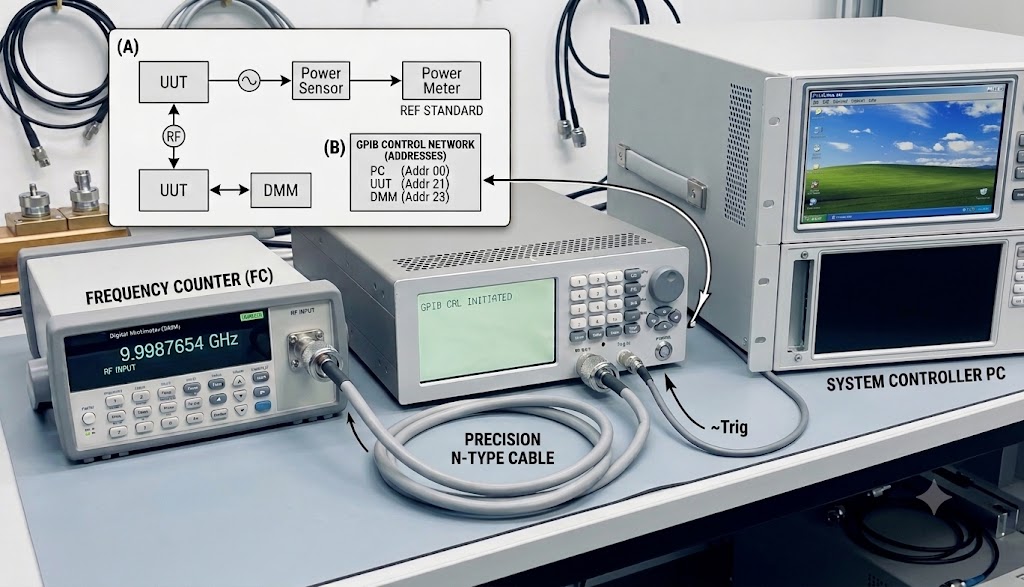

Control and Programming

Designed for flexibility, Tabor’s Lucid-X utilizes industry-standard SCPI and GP-IB architecture to ensure seamless remote control for programming, you can easily integrate the unit using Python, MATLAB, C#/C++, or NI tools like LabVIEW or even HP Basic! For added convenience, the included virtual front panel provides an intuitive graphical interface for control locally or across your network.

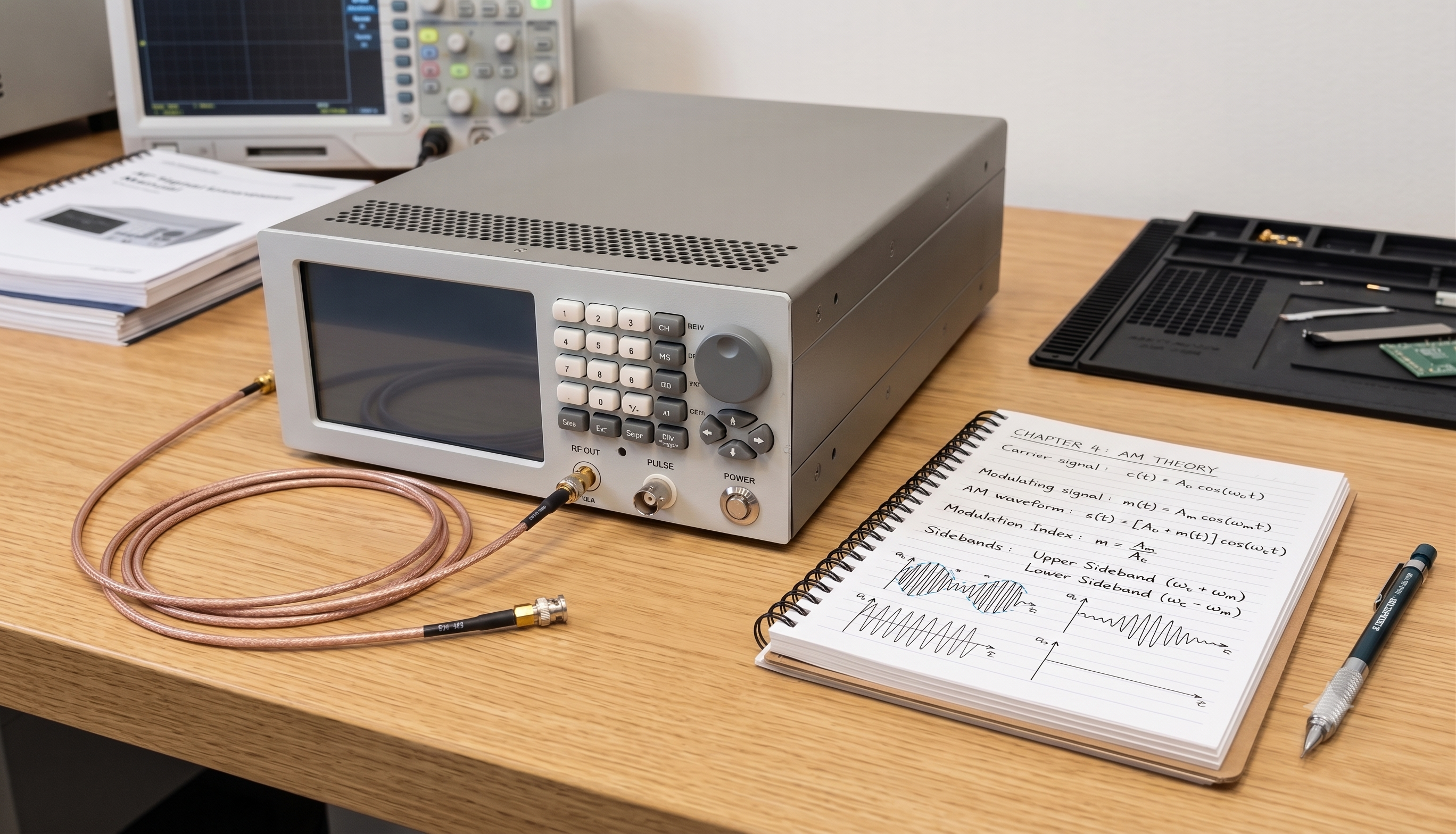

Analog and Pulse Modulation

What makes the Lucid-X family of signal generators stand out is its analog modulation capability. It is equipped with built-in AM, FM, PM, and Sweep modulation features, allowing for versatile signal simulation required in analog communication systems. Specifically, it offers Frequency Modulation (FM) with maximum deviations up to 10 MHz and rates up to 1 MHz, Amplitude Modulation (AM) with linear depth up to 90% and rates up to 100 kHz, and Phase Modulation (PM) with a peak deviation of 360 degrees. Additionally, the instrument supports outstanding Pulse Modulation with a high on/off ratio (typically 80dB) and extremely fast rise/fall times of less than 10 ns, ensuring precision for radar and electronic warfare applications.

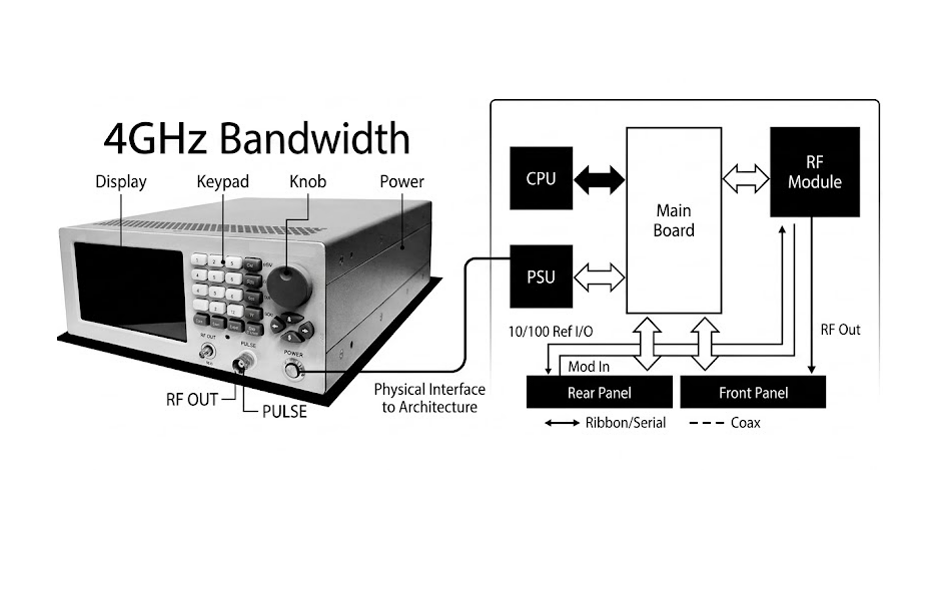

Designed for Self Maintanece

Design for Maintenance (or Design for Maintainability) is a philosophy that aims to reduce the difficulties and costs associated with maintaining products. A maintenance-centric design takes into consideration the operation and future maintenance of products. This ensures that we can meet maintainability objectives in a quick, easy and affordable manner.

Ordering Info

Model	Description
LSX4081B	4GHz RF Analog Signal Generator

The following options and accesories are included in the base model of the LSX4081B

Options

Option	Description
PLS	Pulse Gennerator
LP	Lower Power
N	N-type Front Panel Conector
GPIB	GP-IB Interface
WE	1 year warranty extension (standard warranty 3 years)

Accessories

Name	Description
W1-Rack	19" Single Rack Mounting Kit
