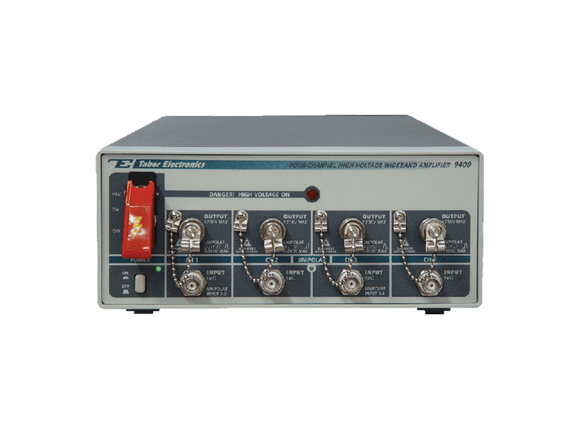

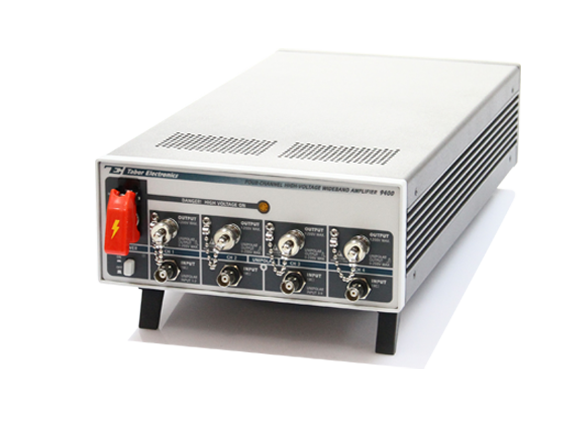

Model 9400

400Vp-p Four-Channel Signal Amplifier

Model 9400 was designed as a general purpose, wide band and high voltage amplifier however, with specific applications in mind. It has four channels built in a small case size to save space and cost but without compromising bandwidth and signal integrity.

Four independent channels
High voltage output to 400Vp-p (±200V)
Output current to 50mA
Full power bandwidth from DC to >500kHz
Slew rate to 400V/µs
Monitor Outputs for each channel
Precise signal amplification for multiple applications
Compatible with any of the Tabor waveform generators
Special unipolar mode for MEMS engine drivers

Relevant Documents

Data Sheet

View Options and Ordering Information

Related Downloads

Brochures and Data Sheets

Declaration of Conformity and Certificates

Documents and articles

Download Type

Description

Version

Release Date

Manuals

User Manual for models 9100A, 9200A and 9400 (651 KB)

Ver. A

03/11/2024

Solution Notes

Signal Amplifiers - Application Note (3 MB)

Ver. 1.0

06/01/2021

Tutorials

Selection Guide for Tabor Amplifiers (5 MB)

Ver. 8.25

24/10/2025

Manuals

Update Tool User Manual (908 KB)

Ver. 1.3

31/03/2025

Features

Four Channels

Model 9400 can output signals from -200V to +200V with continuous currents up to 50mA per channel. The output is driven from a 0.1Ω source and, with some degradation of its bandwidth, can drive capacitive loads up to 1nF, while maintaining its full amplitude range. Model 9400 has a rear-panel monitor output that divides the main output signal by 100 for applications that require monitoring of the output signal with low voltage sensors.

Modes of Operation

The 9400 has two modes of operation. The first is normal mode where each channel amplifies and outputs bipolar signals with a gain of x50. In this mode, the input signal is amplified and delivered to the output terminals without modification of its original properties, except its amplitude level. Using this mode of operation, each channel can be used separately to amplify a unique signal. The second mode of operation is the unipolar mode where the signal is applied to one input, rectified, amplified and output through two separate outputs. Using this mode, the amplifier is converted to a one-input, two-output system, specifically designed to operate the up/down and right/left actuators of a typical MEMS micro engine, as well as for other applications requiring the precise conversion of bipolar to unipolar signals.

Target Applications

The amplifier case was designed to stack on top or below other Tabor products. It can also be mounted alongside a Tabor generator in a standard 19" rack. The waveform-amplifier combo is an ideal solution for virtually any high-voltage, wide bandwidth application.

Safety

Safety played a major role during the design of the Model 9400. The high voltage path to the amplifier circuit is blocked by a front panel mechanical switch and accidental application of high power to the UUT is prevented by a safety latch. The 9400 will output high voltage signals only after the safety latch has been lifted and the high voltage switch flipped to ON position. In emergency situations, one can hit the protective latch to immediately remove the high voltage power from the output terminals. As an additional visual safety feature, a red light glows on the front panel whenever the high voltage is turned on.

Frequently bought together

Model P9082M

9GS/s 8Bit, 4GS Mem 2CH 8 Markers AWG

Model P25812B

2.5GS/s 16Bit 2GS Mem 12CH 24 Markers AWG

Model P94812D

9GS/s 16Bit 8GS Mem 12CH 8 Markers RF AWG Desktop

Ordering Info

Model	Description
9400-50⁽¹⁾	400Vp-p Four-Channel Signal Amplifier

Options

Name	Description
Gain	50 = x50, fixed⁽²⁾

Accessories

Name	Description
S-Rack mount	19" Single Rack Mounting Kit
D-Rack mount	19" Dual Rack Mounting Kit
Case Kit	Professional Carry Bag

⁽¹⁾ Standard configuration.

⁽²⁾ Custom gain available upon request, however, bandwidth may change.

Note: Options and Accessories must be specified at the time of your purchase.
