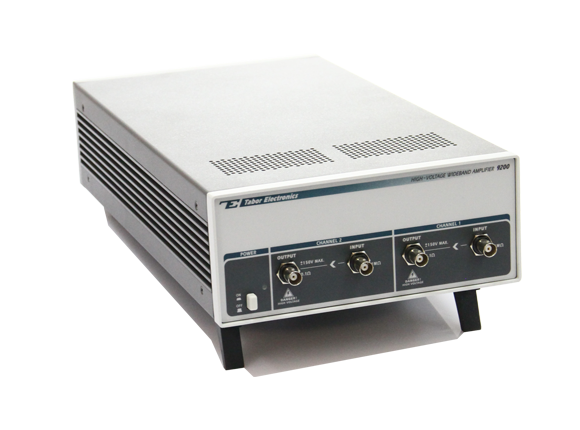

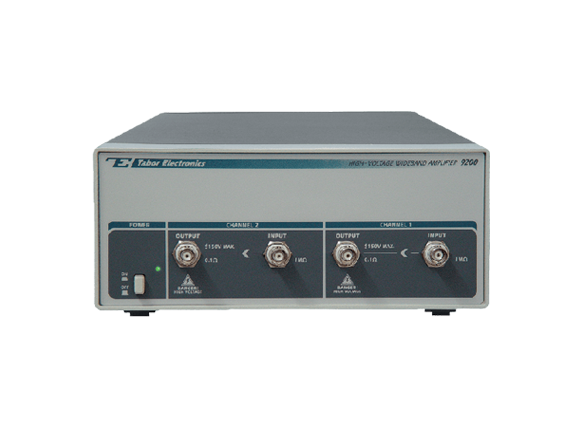

Model 9200

300Vp-p Dual-Channel Signal Amplifier

Model 9200 is a Single/Dual Channel, 2U, half-rack size, bench-top power amplifier designed for signal amplification. With unprecedented signal purity, Model 9200 amplifies signals from DC to over 500kHz. The unit has a fixed gain of x15 however the same amplifier is available with custom gain and no signal purity or performance degradation whatsoever.
Related Documents
Highlights Features Specifications Ordering Info Downloads Reviews
  • High voltage output to 300Vp-p (±150V)
  • Output current to 100 mA per channel
  • Full power bandwidth from DC to >500kHz
  • Slew rate to 200V/µs
  • Low distortion
  • Low cost
  • Custom Configuration of: Gain, Signal Ground


Solves Common Problems

Model 9200 operates as an amplifying buffer for signals emitted from waveform, function, or pulse generators. Most of these generators produce signals limited to 20Vp-p into high impedance. Model 9200 can convert these voltages to levels as high as 300Vp-p. The amplifier has a current driving capability of ±100mA per channel from a 0.1? source. While the output can drive small capacitive or inductive loads, for full high speed potential it is recommended that the load characteristics should be mainly resistive. Model 9200 can withstand load capacitance and inductance up to 100pF and 0.5mH without any performance deterioration.

Ground Level

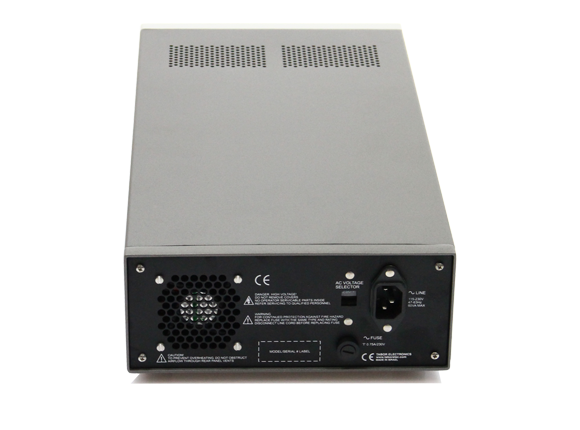

The advanced power amplifier is supplied with floating input and output connectors allowing flotation from ground level up to 250VDC. The only limitation is that both the input and output grounds must connect to the same level. This capability is extremely important in applications where the amplifying device must reside on the same ground level as its source. The floating capability can be added or removed using a simple, user-accessible, jumper connection.

Target Applications

The amplifier case was designed to stack on top or below other Tabor products. It can also be mounted alongside a Tabor generator in a standard 19" rack. The waveform-amplifier combo is an ideal solution for virtually any high-voltage, wide bandwidth application.

Cost Effective Solution

Model 9200 power amplifier is yet another of Tabor`s cost-effective solutions for a full range of high voltage applications.

Input Characteristics
Output Characteristics


9200-15-G(1) 300Vp-p Dual-Channel Signal Amplifier



Gain 15 = x15, 20 = 20Vp-p, fixed(2)
Signal Ground G = Grounded, F = Floating



S-Rack mount 19" Single Rack Mounting Kit
D-Rack mount 19" Dual Rack Mounting Kit
Case Kit Professional Carry Bag


(1) Standard configuration.

(2) Custom gain from x10 to x20 can be ordered however, bandwidth cannot be maintained. Consult the factory before ordering gain above 15.

Note: Options and Accessories must be specified at the time of your purchase.

Download Type
Data sheet Data Sheet for model 9200 26/07/2006
Ver. E
Download (148.5 Kb)
Manuals Users Manual for models 9100 / 9200 30/04/2006
Ver. C
Download (418.9 Kb)
