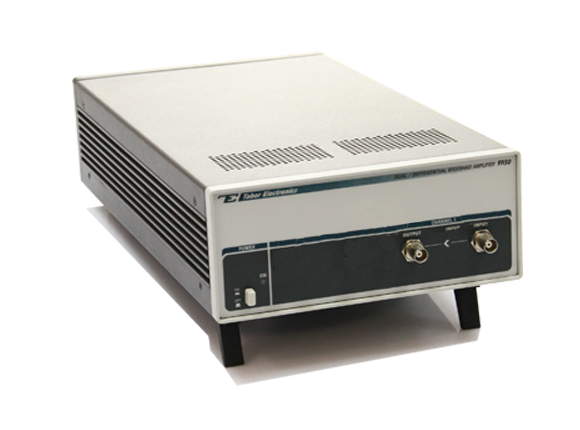

Model 9160

34Vp-p Single Channel Signal Amplifier

The 9160 is a bench-top, 2U, half 19” rack size, fully metal case, single channel DC coupled wideband amplifier designed for high frequency, high current, signal amplification. With a high bandwidth of 45MHz, 34Vp-p into 50 ohms and up to 10W output power, the 9160 is the ideal complementary amplifier to any signal source that needs a supporting power boost for demanding applications.

45MHz bandwidth
High amplitude to 34Vp-p into 50Ω
High output current drive to 1A
Fast transition time of <10ns
Low distortion
Custom Configuration of: Gain, Input impedance, Output configuration

View Options and Ordering Information

Related Downloads

Brochures and Data Sheets

Declaration of Conformity and Certificates

Documents and articles

Download Type

Description

Version

Release Date

Solution Notes

Signal Amplifiers - Application Note (3 MB)

Ver. 1.0

06/01/2021

Tutorials

Selection Guide for Tabor Amplifiers (5 MB)

Ver. 8.25

24/10/2025

Manuals

Update Tool User Manual (908 KB)

Ver. 1.3

31/03/2025

Features

High Current High Power

With a peak output current of 1A the 9160A enables a continuous power output of up to 10W, making it ideal for various pulse applications.

Instrument Configuration

The 9160A’s standard configuration enables a maximum output voltage of 34Vp-p into 50 ohms with a gain of x10. Other custom gain, such as x15 can be ordered at the time of the purchase, enabling clients’ even wider variety of choices to solve their application.

Output Characteristics

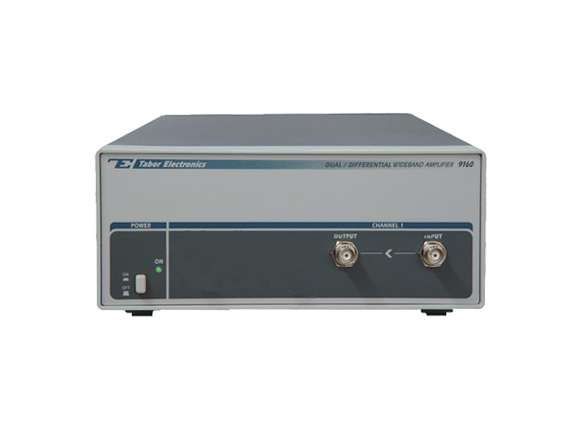

The outputs are located on the front panel. There are two outputs, one for each channel. When the 9160A is configured as two separate amplifiers, the outputs generate amplified signals within the range of 34Vp-p into matching load impedance at approximately 45MHz bandwidth.

Input Characteristics

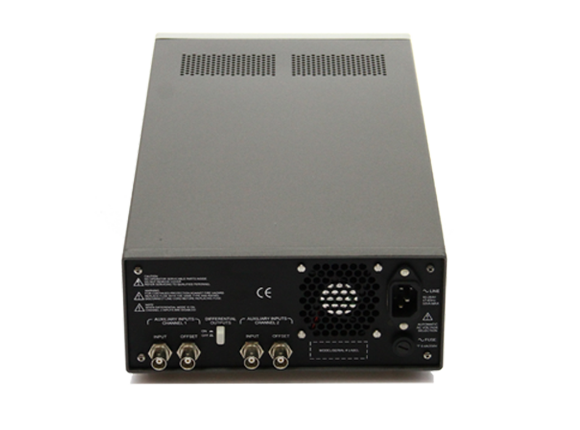

The inputs to the amplifiers can be configured to match different source impedances such as 50Ω, 75Ω, or 1MΩ. There are three inputs for each channel: 1. Main input. This input is located on the front panel and is normally used for signal inputs. 2. Auxiliary input. This input is located on the rear panel and can be used as a summing input. 3. DC Offset input. This input is also located on the rear panel and can be used for offsetting the signal level within the specified output level window.

Target Applications

While target applications include piezo-electronics, transducer characterization, MEMS, general electronics and scientific applications, the new 9160A is an ideal solution for virtually any wide bandwidth application that requires high voltage and high current amplification.

Similar Products

Model 9250

30MHz Differential / Dual-Channel Signal Amplifier

Model 9260

34Vp-p Differential / Dual Channel Signal Amplifier

Model A10160

45MHz 34Vp-p Single Channel Signal Amplifier

Ordering Info

Model	Description
9160-10-50-D-S⁽¹⁾	34Vp-p Single-Channel Signal Amplifier

Options

Name	Description
Gain	10 = x10, 15 = x15, 20 = x20, fixed⁽²⁾
Input Impedance	50 = 50Ω, 75=75Ω, 1M=1MΩ
Coupling	D = DC, A = AC
Output Configuration	S = Two separated channels, D=Single channel with differential outputs⁽³⁾

Accessories

Name	Description
S-Rack mount	19" Single Rack Mounting Kit
D-Rack mount	19" Dual Rack Mounting Kit
Case Kit	Professional Carry Bag

⁽¹⁾ Standard configuration.

⁽²⁾ Custom gain from x10 to x20 can be ordered however, bandwidth cannot be maintained. Consult the factory before ordering gain above 15.

⁽³⁾ Selectable by switch.

Note: Options and Accessories must be specified at the time of your purchase.
