Model WX2182C

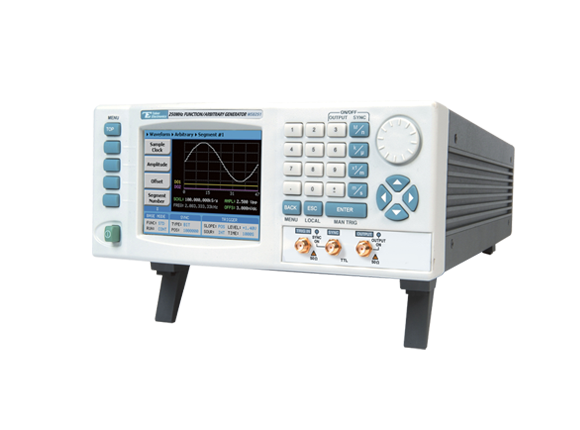

2.3GS/s Dual-Channel Arbitrary Waveform Generator

The WX2182C, 2.3GS/s Dual Channel Arbitrary Waveform Generator, offers unrivaled performance, even when compared to instruments designed to generate fewer types of signals or higher sampling rates. Its affordable footprint saves space and cost without compromising bandwidth and signal integrity.
Related Documents
Highlights Features Specifications Ordering Info Downloads Reviews
  • Dual Channel 2.3GS/s,14 Bit waveform generator, configurable as separate or synchronized channels
  • Inter-channel control from -3ns to +3ns with 10ps resolution
  • 1GHz sine and 500MHz square waves
  • 16M waveform memory, 32M memory optional
  • 3 selectable output paths:
  • 2Vp-p into 50Ω with 700MHz bandwidth, Differential DC output
  • 4Vp-p into 50Ω with 350MHz bandwidth, Differential DC output
  • -20 to +10 dBm into 50Ω with >1GHz bandwidth, RF AC output
  • AM, FM, FSK, PSK, ASK, Amp. Hop, Freq. Hop, Sweep & Chirp
  • Powerful pulse composer for analog, digital and mixed signals
  • 32 Bit LVDS Parallel / Separate Outputs (Option D)
  • Smart trigger enables trigger hold-off, detect, wait, abort and restart
  • Advanced sequencer for step, loop, nest and jumps scenarios
  • Two differential markers with programmable positions, width&levels
  • Two instrument synchronization to form a four-channel system
  • User friendly 4” color LCD display
  • Remote control through LAN, USB and GPIB
  • Store/recall capability on memory stick or 4GB internal memory
  • LXI Class C compliant

Universal Waveform Source

Aside from its natural ability to generate arbitrary shapes with waveform granularity of 1 point, the WX2182C can also be used as a full-featured standard, modulation or pulse generator to solve various applications. Equipped with 2.3GS/s 14-bit DAC and 16M points (32M optional) memory, the WX2182C can generate literally any waveform, short or long, at frequencies up to 1GHz with 12 digits of resolution, resulting in the highest precision signal creation and regeneration without compromising signal fidelity or system integrity.

Signal Integrity and Purity

One of the most important requirement in today’s testing and measurement applications is high signal quality. With a typical SSB phase noise of <-115dBc at 100MHz, and <-95dBc at 1GHz, at 10 kHz carrier offset and with exceptionally good SFDR of <-70dBc at 1GHz carrier, Tabor’s WX2181/2C unique platform delivers one of the best quality signals available on the market today, answering the ever-growing demand for clear and precise signals.

IQ Generation

The ability to generate IQ signals is fundamental for any RF or communication engineer. With the advanced arbitrary capabilities and highly synchronized channels, the WX is ideal for generating digital modulations. The new WX C-Series offers excellent EVM performance even at 1.8GHz IQ bandwidth with less than 1% EVM for a 16QAM modulation, making it, by far, the best performance for price IQ source available in the market today.

Common or Separate Clocks

Need a dual channel unit, a single channel unit… why choose? With the new WX2182C you can have it both ways. The WX2182C has two output channels, which can either operate independently, or synchronized to share the same sample clock source. As two separate channels, one has the advantage of having two separate instruments in one box, with each having the ability to be programmed to output different function shapes, frequency, amplitude levels and/or to operate in different run modes. Alternatively, the advantage of having two synchronized channels with less than 10ps skew and skew control is very significant in applications that require an accurate and controlled phase between the two channels, which is ideal for many X-Y modes and I&Q output applications.

DC or AC Coupled Outputs

Have a requirement for different output paths in your lab? Great! The WX2182C offers two single or differential ended DC coupled and one single ended AC coupled output amplifiers: 2Vp-p into 50Ω with 700MHz bandwidth, for applications demanding optimized transitions and aberrations; 4Vp-p into 50Ω with 350MHz bandwidth, for applications demanding high voltage or -20 to +10dBm path for applications requiring bandwidth and flatness for frequencies as high as 1GHz.

Powerful Segmentation and Sequencing

Solving almost every complex application, powerful segmentation and sequencing produces a nearly endless variety of complex waveforms. The waveform memory can be divided into multiple waveform segments and sequenced in user-selectable fashion to create complex waveforms that have repeatable segments, jump and nest, saving you precious memory space. The WX2182C also allows you to generate up to 1000 sequence scenarios and sequence between them to generate an even higher level of flexibility in waveform creation.

Dynamic Segment / Sequence Control

Working in the real-time world and need fast waveform switching? The WX2182C has a rear panel control designed specifically for that. Having the dynamic control feature, in effect, can serve as replacement of the sequence table where the real-time application can decide when and for how long a waveform will be generated. For much more complex applications, this same input may serve as a dynamic switch for complete sequences, creating real-life scenarios for real-time applications.

Smart Trigger

Until now, you've been forced to trigger on a specific event. Tabor's all-new SmarTrigger feature was designed to enhance the trigger capability and facilitate wider flexibility of a specific pulse event. It allows triggering on either a pulse having a larger pulse width than a programmed time value (time), or even on a pulse having a pulse width between two limits (<>time). In addition, the SmarTrigger has a hold-off function, in which the output is held idle after the first trigger and starts a waveform cycle only with the first valid trigger after a hold-off interval has lapsed, allowing you to solve endless "negotiation" scenarios.

Pulse / Pattern Creation

Generating complex pulse trains has never been easier. The Pulse Composer is a powerful built-in tool that converts the WX2182C to a very sophisticated Pulse/Pattern Generator, allowing to create literally any complex pulse train / pattern, whether it’s a single pulse, multi-level, linear-points, initialization or preamble pattern definition, user-defined or even standard random patterns with programmable resolution, so it doesn’t matter if your application is radar communications, nanotechnology or serial bus testing, the pulse/pattern composer is the right tool for your application. Moreover, all the WX2182C advanced trigger modes are applicable, hence one can choose to use the “step” mode to advance every bit independently or the “once” mode to advance a complete data block in one trigger event, enabling even more applications, such as trigger, clock and data protocols.

Programmable Differential Markers

The WX2182C is equipped with two programmable differential markers for each output channel. Differential simply means outstanding signal integrity for high frequencies, whereas the programmability allows you to set position, width, delay and amplitude for any required peripheral triggering need. While bench usage enables setting only one marker position, you can set multiple markers and program different marker properties for each transition instance remotely, allowing various triggering profiles.

Digital Outputs (Option D)

In today’s world, many applications require multiple digital outputs or a parallel digital interpretation of the analog outputs. With the new digital option the WX now offers 32 programmable digital outputs, up to extra 16M of digital memory, up to 1.15Gb/s of data rate and controllable skew between outputs. Combined with Tabor’s dedicated digital signal amplifier, WXD1, the WX is, by far, the best mixed signal source on the market to meet all of today's requirements.

Multi-Instrument Capability

Need more than one channel to drive your application? The WX Series allows you can reach up to 8 synchronized channels system using a Master-Slave arrangement, allowing users to benefit from the same high quality performance even for multi-channel needs.

Easy to Use

Large and user-friendly 4” backlit color LCD display facilitates browsing through menus, updating parameters and displaying detailed and critical information for your waveform output. Combined with numeric keypad, ten quick-link function & run mode buttons, cursor position control and a dial, the front panel controls simplify the often complex operation of an arbitrary waveform generator.

Multiple Environments to Write Your Code

Model WX2182C comes with a complete set of drivers, allowing you to write your application in various environments such as: Labview, CVI, C++, VB, and MATLAB. You may also link the supplied dll to other Windows based API’s or, use low-level SCPI commands (Standard Commands for Programmable Instruments) to program the instrument, regardless if your application is written for Windows, Linux or Macintosh operating systems.

ArbConnection

ArbConnection is a powerful software package that allows you to easily design any type of waveform and control the instrument functions, modes and features via a graphical user interface (GUI). Whether you need to generate output using a built-in waveform, a hand sketched or played back waveform, a pulse pattern, a serial data string, a modulated carrier or even an equation, ArbConnection provides you the editing tools which makes virtually any application possible.

Configuration
Standard Waveforms
Pulse
Pulse / Pattern Composer
Arbitrary Waveforms
Sequenced Waveforms
Sequenced Sequences
Modulation
Common Characteristics
Outputs
Inputs
Run Modes
Trigger Characteristics
Inter-Channel Skew Control
Two Instruments Synchronization
General



ModelDescription
WX2182C 2.3GS/s Dual-Channel Arbitrary Waveform Generator



Options

NameDescription
Option 1 32M Memory
Option D 32 Bit Digital Outputs
Option 520D Tek AWG520 Hardware and Firmware Emulator



Accessories

NameDescription
A10150 150MHz 16Vp-p Single/Dual Channel "Snap-On" Signal Amplifier
A10160 45MHz 34Vp-p Single/Dual Channel "Snap-On" Signal Amplifier
WXD1 1.15Gb/s 14-Channels Digital Signal Amplifier/POD
S-Sync Cable For Multiple Instrument Synchronization
W-Rack mount 19" Single Rack Mounting Kit
Case Kit Professional Carry Bag



Note: Options and Accessories must be specified at the time of your purchase.
