Model WW2074

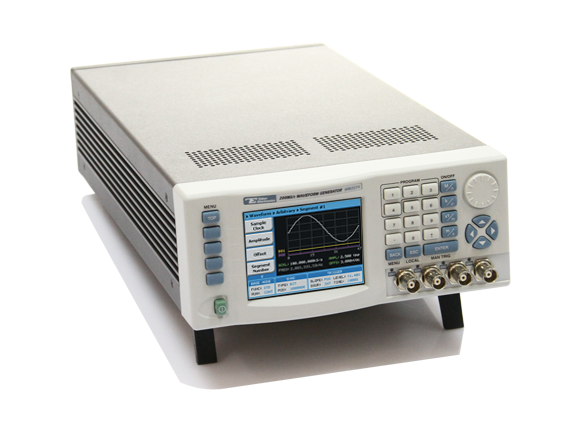

200MS/s Four-Channel Arbitrary Waveform Generator

The WW2074 offer a 200 MS/s four-channel universal waveform synthesizer. Each is built in a small case size to save space and cost but without compromising bandwidth and signal integrity. The instrument outputs either standard or user-defined waveforms in the range of 100µHz and up to 80MHz.
Related Documents
Highlights Features Specifications Ordering Info Downloads Reviews
  • Four-channel 200 MS/s waveform generator
  • Sine waves to 80MHz and square to 50MHz
  • 16 Bit amplitude resolution
  • Up to 4M waveform memory
  • 10 Vpp into 50Ω, double into open circuit
  • Multiple run modes: trigger, timer and trigger delay
  • Four separate SYNC outputs
  • Powerful sequence generator links and loops segments in user-defined fashion. Stores up to 10 different sequence tables
  • High resolution 3.8” LCD, color display
  • LAN, USB and GPIB interfaces
  • Multi-Instrument synchronization
  • ArbConnection software for easy waveform creation

Signal Integrity

As technology is evolving and new devices are developed every day, faster signals are needed to simulate and stimulate these new devices. The four channel models provide the highest bandwidth in their class and hence provide accurate duplication and simulation of test signals. With a wide range of sample clock generators (up to 200MS/s), 16-bit vertical resolution and wide output bandwidth (up to 80MHz), one can create mathematical profiles, download the coordinates to the instrument and re-generate waveforms without compromising their fidelity and compatibility to the original design.

16 Bit Resolution

16-bit DAC`s are used for building waveforms with excellent accuracy and resolution which are suitable for the finest test signals that are needed for today`s sensitive instruments. Using the latest technology, you can be assured that the features and capabilities of the four channel models will be useful for many years.

Four Synchronized Channels

The four channels models have four output channels which are all synchronized to the same reference clock and share the same sample clock. This is not a limitation because the output frequency is a function of the number of points which are used for creating the waveform shape. On the other hand, the advantage of having four synchronized channels is huge in applications that require accurate and controlled phase between channels. Many applications require XY drive so two channels is just what is needed however, for three phase power simulation and four channel MEMS micro engine actuators, the four channel model is the most suitable product to use.

High Speed Function Generator

Care to use the instrument as a function generator? No need to fuss with loading complex waveform coordinates, simply select the standard waveforms tab and start generating any one of the ten waveforms that are pre-computed and available for immediate use. Included are: sine, triangle, square, pulse, ramp, sinc and others.

Stable and Accurate Output Signals

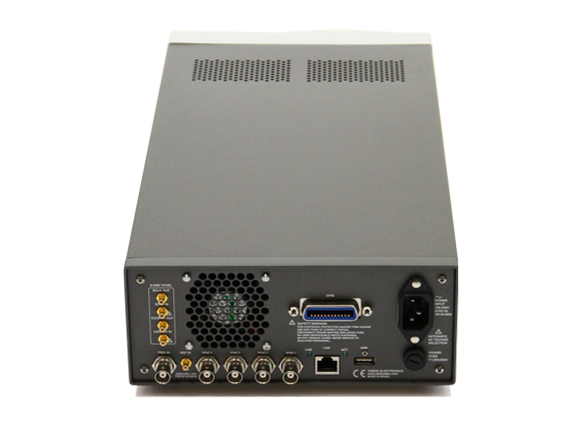

As standard, the instrument is equipped with a frequency reference that has 1ppm accuracy and stability over a period of 1 year. An external frequency reference is provided on the rear panel for applications requiring greater accuracy and stability.

Waveform Memory and Memory Segmentation

Waveform memory is the internal "black board" where the waveforms are created and reside. Large memory bank provides for longer waveforms. One can use the entire memory for a single waveform or split the length to smaller segments. In this case, many waveforms can be stored in the same memory and replayed, one-at-a-time, when recalled to the output. The memory segmentation is combined with a sequence generator that can take different memory segments and link (and loop) them in any order as required for the test. The ability to loop waveform segments in a sequence saves a lot of memory space and hence, extends the capability of the generator to produce complex and much longer waveforms, which would otherwise require large banks of memory. The four channel models have four sequence generators that can be designed to generate unique sequences for each output channel.

Easy to use

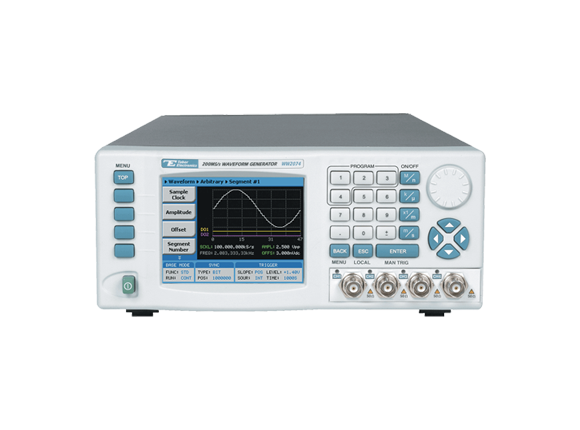

Large and user-friendly 3.8” back-lit color LCD display facilitates browsing through menus, updating parameters and displaying detailed and critical information for your waveform output. Combined with numeric keypad, cursor position control and a dial, the front panel controls simplify the often complex operation of an arbitrary waveform generator.

Remote Control

Access speed is an increasingly important requirement for test systems. Included with each instrument is a variety of interfaces: Ethernet, USB and GPIB so one may select the most suitable interface for the application. Remote control of instrument functions, parameters and waveform download is easily tailored to specific system environment regardless if it is just a laptop to instrument or full-featured ATE system. IVI drivers and factory support will speed up system integration and hence minimize time-to-market as well as significantly reduce system development costs.

Remote Calibration

Normal calibration cycles in the industry range from one to three years where instruments are sent to a service center, opened to allow access to trimmers, calibrated and certified for repeated usage. Leading-edge technology was implemented to allow calibration from any interface, USB, GPIB or LAN. Calibration factors are stored in a flash memory thus eliminating the need to open instrument covers.

Multiple Environments to Write Your Code

All models come with a complete set of drivers, allowing you to write your application in various environments such as: Labview, CVI, C++, VB, and MATLAB. You may also link the supplied dll to other Windows based API’s or, use low level SCPI commands (Standard Commands for Programmable Instruments) to program the instrument, regardless if your application is written for Windows, Linux or Macintosh operating systems.

Multi-Instrument Synchronization

Multiple four channel models can be synchronized using a Master-Slave arrangement allowing users to benefit from the same high quality performance in their multi-channels system.

ArbConnection

The ArbConnection software provides you with full control of instrument functions, modes and features. ArbConnection is a powerful editorial tool that allows you to easily design any type of waveform. Whether it is the built in wave, pulse or serial data composers, or the built in equation editor with which you can create your own exotic functions, with ArbConnection virtually any application is possible.



ModelDescription
WW2074 200MS/s Four-Channel Arbitrary Waveform Generator



Options

NameDescription
Option 1 2M Memory per channel
Option 2 4M Memory per channel



Accessories

NameDescription
S-Rack mount 19" Single Rack Mounting Kit
D-Rack mount 19" Dual Rack Mounting Kit
Case Kit Professional Carry Bag



Note: Options and Accessories must be specified at the time of your purchase.

Download Type
Drivers USB Driver for the entire Wonder Wave Series , PM8571, PM8572, WS8101, WS8102 and WS8251

Compatible with Windows XP, 7, 8 and 10
(32 & 64 Bit)
11/06/2017
Ver. 1.1
Download (1.6 Mb)
Drivers IVI driver for models WS8101, WS8102, WW2571, WW2572, WW2571A, WW2572A, WW5064, WW1074, WW2074, PM8571, PM8572, PM8571A, PM8572A, TE5351 and TE5251 (32 bit OS)

Application development environments: MATLAB, LabVIEW, LabWindows/CVI, Visual C, Visual Basic
26/06/2016
Ver. 1.1.28
Download (8.9 Mb)
Drivers IVI driver for models WS8101, WS8102, WW2571, WW2572, WW2571A, WW2572A, WW5064, WW1074, WW2074, PM8571, PM8572, PM8571A, PM8572A, TE5351 and TE5251 (64 bit OS)

Application development environments: MATLAB, LabVIEW, LabWindows/CVI, Visual C, Visual Basic
26/06/2016
Ver. 2.0.2
Download (9.7 Mb)
Firmware Firmware update for models WW5064, WW1074 and WW2074 20/10/2015
Ver. 3.1
Download (304.2 Kb)
Manuals User Manual for models WW5064, WW1074 and WW2074 15/07/2015
Ver. C
Download (7.4 Mb)
Third Party NI-VISA Software (Runtime) 16/06/2015
Ver. 14.0.1
Download (70.9 Mb)
Software ArbConnection 4.3 - Windows 7 Compatible 15/06/2015
Ver. 4.3.207
Download (10.4 Mb)
Tutorials How to Generate a PSK Modulation (WW) 01/08/2014
Ver. 1.0
Download (913.3 Kb)
Tutorials How to Set the Run Mode (WW) 01/08/2014
Ver. 1.0
Download (569.2 Kb)
Solution Notes Envelope Tracking 15/03/2014
Ver. 1.0
Download (427.0 Kb)
Solution Notes JTAG Boundary Scan Testing 15/03/2014
Ver. 1.0
Download (439.1 Kb)
Solution Notes Lasers 15/03/2014
Ver. 1.0
Download (410.0 Kb)
Solution Notes Plasma Displays 15/03/2014
Ver. 1.0
Download (458.8 Kb)
Solution Notes Power Lines 15/03/2014
Ver. 1.0
Download (408.7 Kb)
Tutorials How to Simply Upgrade A Tabor Device Firmware 15/03/2014
Ver. 1.0
Download (648.2 Kb)
Tutorials How to Simply Generate a Sequence 15/03/2014
Ver. 1.0
Download (903.4 Kb)
Tutorials How to Simply Install and Connect to ArbConnection 15/03/2014
Ver. 1.0
Download (1.0 Mb)
Tutorials How to simply Generate an Arbitrary Waveform 15/03/2014
Ver. 1.0
Download (854.2 Kb)
Tutorials How to Simply Generate a Pulse 15/03/2014
Ver. 1.0
Download (590.2 Kb)
Tutorials How to Simply Generate a Standard Waveform 15/03/2014
Ver. 1.0
Download (622.1 Kb)
Tutorials How to Simply Connect WW, WS & PM Series via USB 15/03/2014
Ver. 1.0
Download (646.5 Kb)
Tutorials How to Simply Connect Tabor Units via GPIB/LAN 15/03/2014
Ver. 1.0
Download (376.8 Kb)
Manuals Manual for ArbConnection 4.x 29/07/2010
Ver. 1
Download (4.9 Mb)
Drivers MAT/CAL Calibration driver for model 2074 20/10/2008
Ver. 1.0
Download (12.5 Mb)
Data sheet Data Sheet for model WW2074 08/11/2007
Ver. B
Download (337.5 Kb)
Software NetConfig - Firmware upload utility 09/01/2006
Ver. 1.0.5
Download (4.5 Mb)
