Model WS8101

100MHz Single-Channel Arbitrary Function Generator

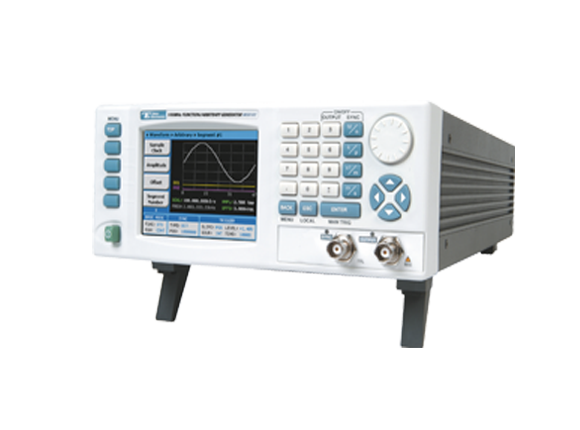

The Tabor WS8101 is a Single Channel Arbitrary / Function Generator with a 100MHz bandwidth and the functionality of a function generator, arbitrary generator and pulse generator all in one easy to use high performance unit. It is a compact stand alone bench top unit that will satisfy all of the industry and education standard testing needs for years to come.
Related Documents
Highlights Features Specifications Ordering Info Downloads Reviews
  • Single-channel Arbitrary Function Generator
  • 100MHz sine and 62.5MHz square waves
  • Triangle, ramp, sinc, gaussian, exponential, noise, pulse generation with variable edge, and DC waveforms
  • 16Vp-p into 50Ω, 32Vp-p into open circuit
  • 16 Bit, 250 MS/s, 512k points arbitrary waveforms
  • Linear & logarithmic sweeps
  • Continuous, triggered, gate and burst
  • AM, FM, FSK, and PSK modulation
  • High resolution 3.8" LCD, color display
  • Ethernet, USB and GPIB interfaces
  • Free ArbConnection software, IVI and MATLAB drivers

Standard Waveforms

The WS8101 has 11 built in functions for quick and easy wave generation. Front panel operations allows for easy selection of wave form and editing of all wave parameters. All of the standard waves can reach up to 31.25MHz with Sine and Square going as high as 100MHz and 62.5MHz respectively.

User Defined Waveforms

For more advanced users the WS8101 with its 16-bit vertical resolution offers a standard 512kb memory depth and a 250MS/s sample clock for designing waveforms. With the ability to control and edit the value of each and every point any wave is possible. The memory can be divided into segments for storing all of the user defined waveforms.

Modulated Waveforms

Agility and modulation capabilities open the door to diverse applications. In addition to the capability of generating any shape and style of waveform with the arbitrary waveform generation power, the products can also do standard modulation schemes such as FM, AM, FSK, sweep and PSK without sacrificing the power of the instrument control and output run modes.

Accuracy and Stability

As standard, the instrument is equipped with an internal frequency reference that has 1ppm accuracy and stability over a period of 1 year. An external frequency reference is provided on the rear panel for applications requiring greater accuracy or stability, supported by the instrument’s up to 14 digits resolution from remote.

Easy to Use

Large and user-friendly 3.8” back-lit color LCD display facilitates browsing through menus, updating parameters and displaying detailed and critical information for your waveform output. Combined with numeric keypad, cursor position control and a dial, the front panel controls simplify the often complex operation of an arbitrary function generator.

Remote Control

Model WS8101 comes standard with a variety of interfaces: LAN, USB and GPIB allowing the user to freely select the interface best suited to his individual requirements. The included ArbConnection software is a powerful editorial tool for designing waveforms and provides the user with full control of instrument functions, modes and features.

Multiple Environments to Write Your Code

Model WS8101 comes with a complete set of drivers, allowing you to write your application in various environments such as: Labview, CVI, C++, VB and MATLAB. You may also link the supplied dll to other Windows based API’s or, use low level SCPI commands (Standard Commands for Programmable Instruments) to program the instrument, regardless if your application is written for Windows, Linux or Macintosh operating systems.

Automated External Self-Calibration

Leading-edge technology is implemented to allow calibration from any interface, USB, GPIB or LAN and calibration factors are stored in a flash memory thus eliminating the need to open instrument covers.

ArbConnection

The ArbConnection software provides you with full control of instrument functions, modes and features. ArbConnection is a powerful editorial tool that allows you to easily design any type of waveform. Whether it is the built in wave, pulse or serial data composers, or the built in equation editor with which you can create your own exotic functions, ArbConnection makes virtually any application possible.

Standard Waveforms
Arbitraray Wabeforms
Modulation
Common Characteristics
Outputs
Inputs
Run Modes
Trigger Characteristics
General



ModelDescription
WS8101 100MHz Single Channel Arbitrary Function Generator



Accessories

NameDescription
S-Rack mount 19" Single Rack Mounting Kit
D-Rack mount 19" Dual Rack Mounting Kit
Case Kit Professional Carry Bag



Note: Options and Accessories must be specified at the time of your purchase.

Download Type
Drivers USB Driver for the entire Wonder Wave Series , PM8571, PM8572, WS8101, WS8102 and WS8251

Compatible with Windows XP, 7, 8 and 10
(32 & 64 Bit)
11/06/2017
Ver. 1.1
Download (1.6 Mb)
Drivers IVI driver for models WS8101, WS8102, WW2571, WW2572, WW2571A, WW2572A, WW5064, WW1074, WW2074, PM8571, PM8572, PM8571A, PM8572A, TE5351 and TE5251 (32 bit OS)

Application development environments: MATLAB, LabVIEW, LabWindows/CVI, Visual C, Visual Basic
26/06/2016
Ver. 1.1.28
Download (8.9 Mb)
Drivers IVI driver for models WS8101, WS8102, WW2571, WW2572, WW2571A, WW2572A, WW5064, WW1074, WW2074, PM8571, PM8572, PM8571A, PM8572A, TE5351 and TE5251 (64 bit OS)

Application development environments: MATLAB, LabVIEW, LabWindows/CVI, Visual C, Visual Basic
26/06/2016
Ver. 2.0.2
Download (9.7 Mb)
Third Party NI-VISA Software (Runtime) 16/06/2015
Ver. 14.0.1
Download (70.9 Mb)
Software ArbConnection 4.3 - Windows 7 Compatible 15/06/2015
Ver. 4.3.207
Download (10.4 Mb)
Tutorials How to Generate a Frequency Hop Modulation (WW) 01/08/2014
Ver. 1.0
Download (961.7 Kb)
Tutorials How to Generate a PSK Modulation (WW) 01/08/2014
Ver. 1.0
Download (913.3 Kb)
Tutorials How to Generate a Sweep (WW) 01/08/2014
Ver. 1.0
Download (755.3 Kb)
Tutorials How to Generate an FSK Modulation (WW) 01/08/2014
Ver. 1.0
Download (880.3 Kb)
Tutorials How to Set the Run Mode (WW) 01/08/2014
Ver. 1.0
Download (569.2 Kb)
Solution Notes DTMF (Dual-Tone Multi Frequency) 15/03/2014
Ver. 1.0
Download (400.1 Kb)
Solution Notes Cold Atoms 15/03/2014
Ver. 1.0
Download (428.4 Kb)
Solution Notes RFID 15/03/2014
Ver. 1.0
Download (452.6 Kb)
Tutorials How to Simply Upgrade A Tabor Device Firmware 15/03/2014
Ver. 1.0
Download (648.2 Kb)
Tutorials How to Simply Install and Connect to ArbConnection 15/03/2014
Ver. 1.0
Download (1.0 Mb)
Tutorials How to Simply Connect WW, WS & PM Series via USB 15/03/2014
Ver. 1.0
Download (646.5 Kb)
Tutorials How to Simply Connect Tabor Units via GPIB/LAN 15/03/2014
Ver. 1.0
Download (376.8 Kb)
Firmware Firmware update for model WS8101 13/01/2014
Ver. 2.4
Download (311.1 Kb)
Manuals Manual for ArbConnection 4.x 29/07/2010
Ver. 1
Download (4.9 Mb)
Data sheet Data Sheet for model WS8101 04/02/2009
Ver. A
Download (231.2 Kb)
Manuals User Manual for models WS8101 and WS8102 04/02/2009
Ver. A
Download (8.3 Mb)
Software NetConfig - Firmware upload utility 09/01/2006
Ver. 1.0.5
Download (4.5 Mb)
